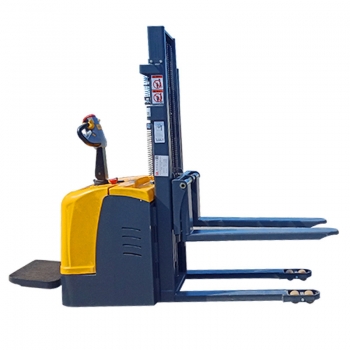

Station drive full electric stacker

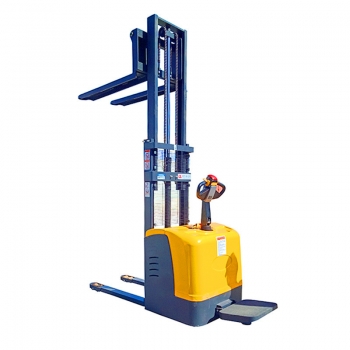

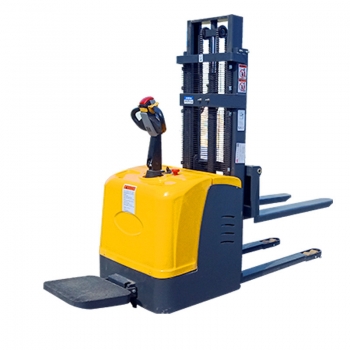

24V station driving 1.5T electric stacker hydraulic pressure increased by 3M
Electric stacker truck adopts a large-load safety gantry to ensure the operator's line of sight is unaffected while improving safety. Electric stacker truck adopts 210AH large-capacity battery, which can be used for up to 8 hours, improving work efficienc- Price : -
- Min. Order : 1
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download

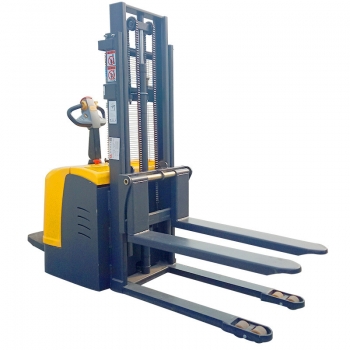

24V station driving 1.5T electric stacker hydraulic pressure increased by 3M

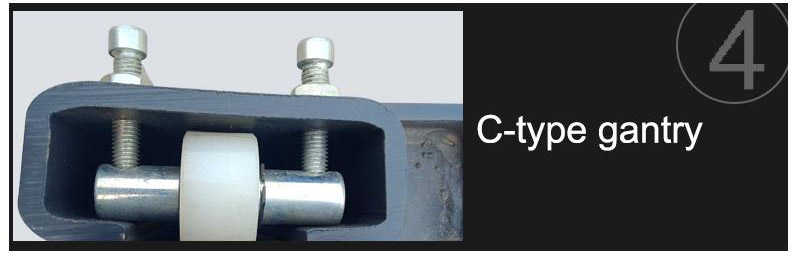

Electric stacker truck adopts a large-load safety gantry to ensure the operator's line of sight is unaffected while improving safety. Electric stacker truck adopts 210AH large-capacity battery, which can be used for up to 8 hours, improving work efficiency. Electric stacker truck has an emergency reverse button with a safety of up to 99%.
|
Model |
單位 |
正LBCDD-15(C/H)-30-SD |
|
Load |
KG |
1500 |
|
Form of steel |
|
C/H |
|

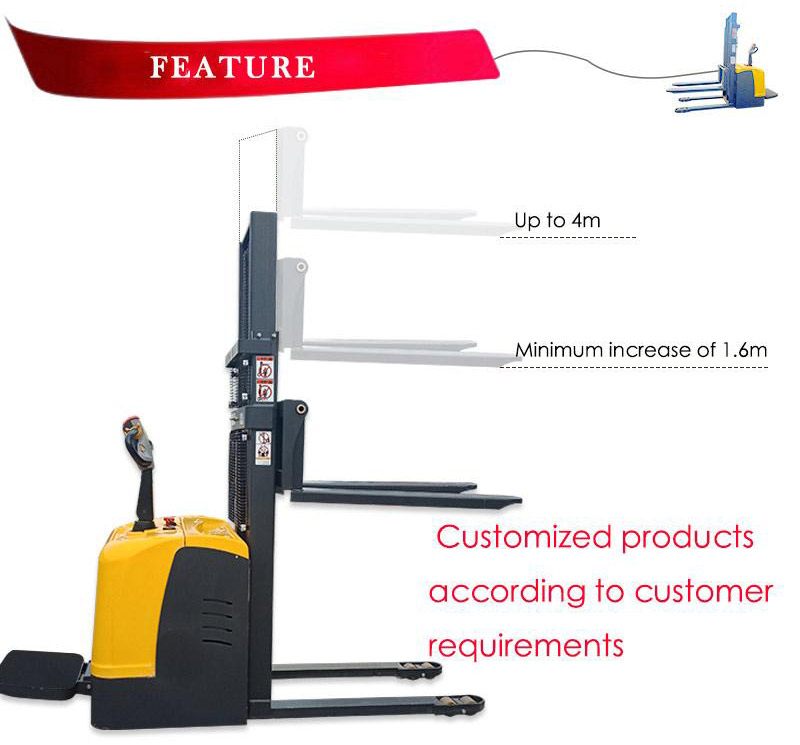

Lifting height |
mm |
3000 |
|
Frame static height |
mm |
2090 |
|
After lifting the total height |
mm |
3410 |
|
No. of front / rear wheels(x=drive) |
個(gè) |
4/2+1X |
|
Size of riving wheel / load bearing wheel / auxiliary wheel |
mm |
Φ250*80/Φ100*50/Φ80*70 |
|
Load center distance |
mm |
500 |
|
Fork minimum clearance from the ground |
mm |
40 |
|
Turning radius |
mm |
1600 |
|
Minimum channel requirement |
mm |
2464 |
|
Total body width |
mm |
850 |
|
Total body length(include footboard) |
mm |
2140 |
|
Fork width |
mm |
700 |
|

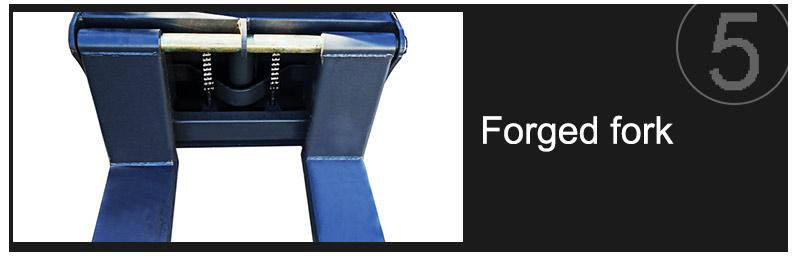

Fork size |
mm |
1100*170*60 |
|
Minimum height of fork off the ground |
mm |
90 |
|
Fork leg width |
mm |
100 |
|
Body height from the ground |
mm |
30 |
|
Lifting speed(full load/no load) |
mm/s |
100/80 |
|
Decline speed(full load/no load) |
mm /s |
200/150 |
|
Driving speed(full load/no load) |
m / h |
5600/4000 |
|
Maximum gradient(full load/no load) |
° |
10/6 |
|
Tire |
|
Polyurethane |
|
Driving method |
|
Station drive |
|
Braking method |
|
Electromagnetic brake |
|
Battery |
V-AH |
24V/120/210/240 |
|
Lifting motor |
KW |
3 |
|
Walking motor |
KW |
1.5 |
|
Hydraulic oil |
|
46＃ |
|
Total weight |
KG |
≈900/1070/1100 |
|
Noise level |
dB(A) |
＜70 |
Electric stacker truck adopts a large-load safety gantry to ensure the operator's line of sight is unaffected while improving safety. Electric stacker truck adopts 210AH large-capacity battery, which can be used for up to 8 hours, improving work efficiency. Electric stacker truck has an emergency reverse button with a safety of up to 99%.
New Newton (Taizhou) forklift truck co.,ltd is a global company specializing in the design, manufacture and service of electric storage equipment and forklifts. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. With high-tech R&D center and provincial-level technology center, we have a strong global supplier team, a lean and efficient production support system and a sales and service-oriented molecular company to provide high-quality products for global users. and service.
FAQ
1. How long is the warranty time?
10000 working hours or 12 month, whichever comes first.
2. How can I get the after-sales service?
The global service network is still under construction, but if you have any questions or need
professional support, you can contact us. We will try our best to solve your problem within 24
hours and arrange for the delivery of spare parts within 48 hours.
3. How about your warranty item?
We can support you with original spare parts, and email or telephone assistance in the following
days. If necessary, our experience engineer can go abroad to your place for technical support.
4. How about your product quality?
All our products are form the original manufactures and the quality is 100% guaranteed.
5. Can I be your agent in my country?
It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.
6. What information should I let you know if I want to get a quotation?
Lifting capacity Size Load Features Would be better if you have drawings of your piant.
7. What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
