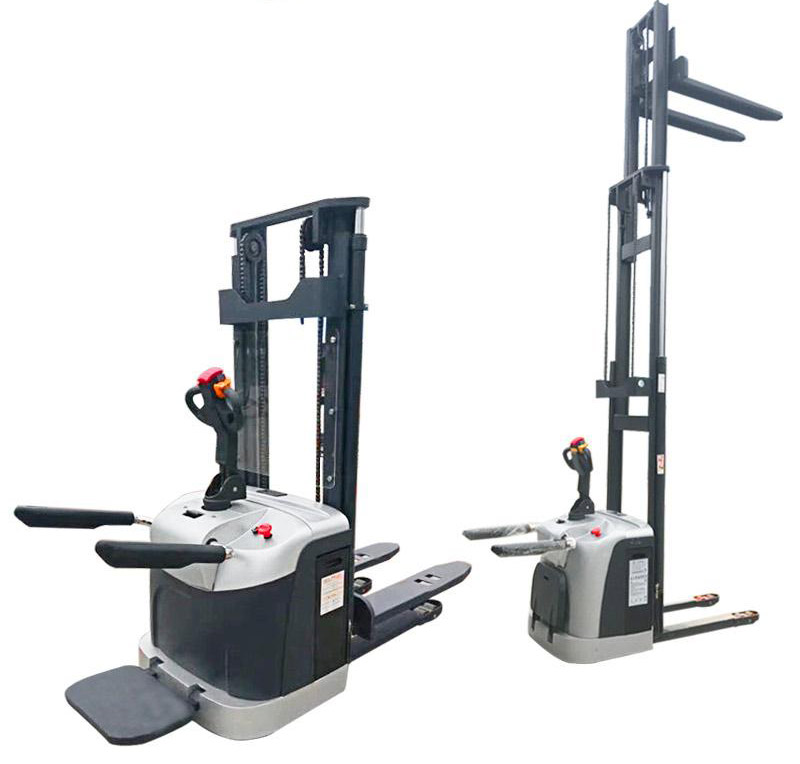

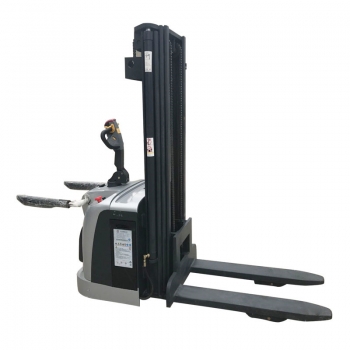

Station drive full electric stacker

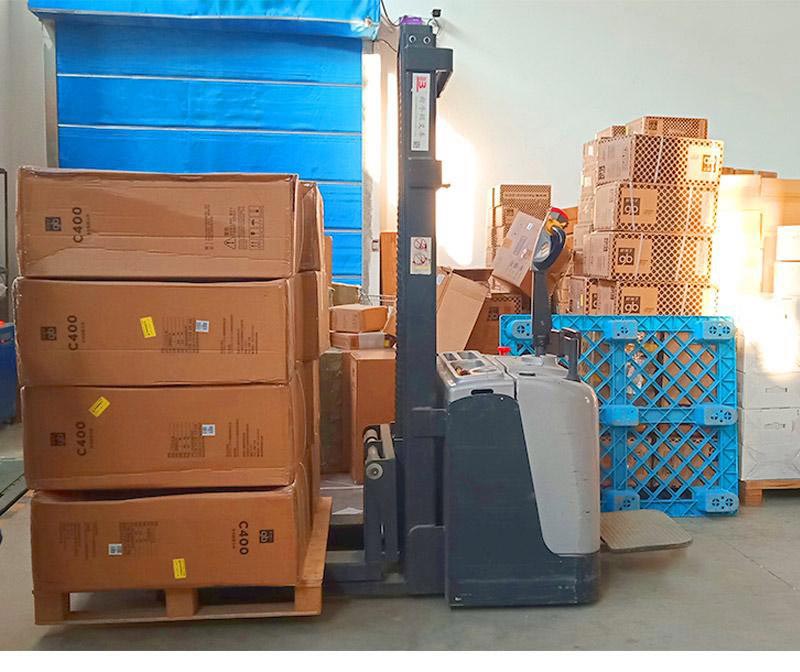

1.5 ton Station-mounted stacker forklift full electric stacker for limited space
Battery pallet stacker is a variety of wheeled haulers that handle loading, unloading, stacking, and short-distance transport of palletized goods. The battery powered stacker has simple structure, flexible control, good micro-motion and high explosion-pro- Price : -
- Min. Order : 1

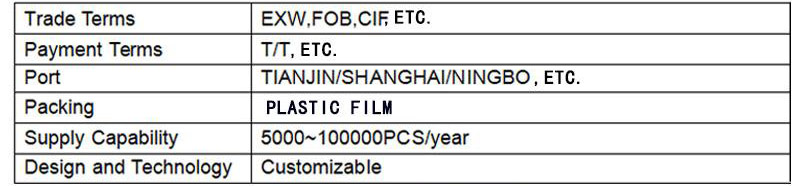

- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download

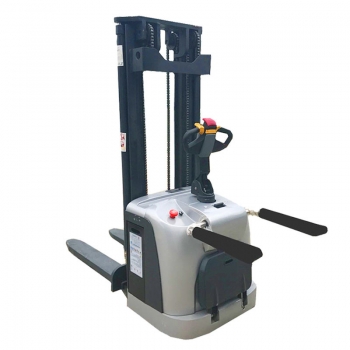

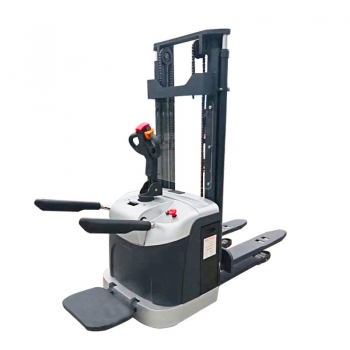

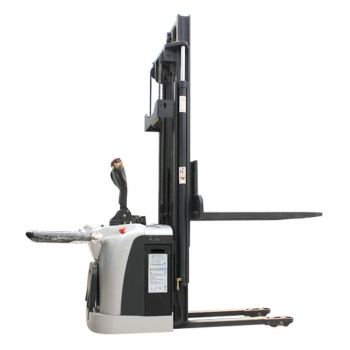

1.5 ton Station-mounted stacker forklift full electric stacker for limited space
| Model | 單位 | 銀 |
| LBCDD-15（C/H)-30-SD | ||
| Load | KG | 1500 |
| Form of steel | C/H | |
| Lifting height | mm | 3000 |
| Frame static height | mm | 1990 |
| After lifting the total height | mm | 3450 |
| No. of front / rear wheels(x=drive) | 個 | 4/2+1X |
| Size of riving wheel / load bearing wheel / auxiliary wheel | mm | Φ210*75/Φ115*55/Φ80*70 |
| Load center distance | mm | 500 |
| Fork minimum clearance from the ground | mm | 40 |
| Turning radius | mm | 1280 |
| Minimum channel requirement | mm | 2395 |
| Total body width | mm | 800 |
| Total body length(include footboard) | mm | 1980/2140 |
| Fork width | mm | 560/680 |
| Fork size | mm | 1150*160*60 |
| Minimum height of fork off the ground | mm | 90 |
| Fork leg width | mm | 100 |
| Body height from the ground | mm | 30 |
| Lifting speed(full load/no load) | mm/s | 150/100 |
| Decline speed(full load/no load) | mm /s | 130/150 |
| Driving speed(full load/no load) | m / h | 4200/4000 |
| Maximum gradient(full load/no load) | ° | 10月6日 |
| Tire | Polyurethane | |
| Driving method | Station drive | |
| Braking method | Electromagnetic brake | |
| Battery | V-AH | 24V/80/250 |
| Lifting motor | KW | 2.2 |
| Walking motor | KW | 0.75 |
| Hydraulic oil | 46＃ | |
| Total weight | KG | ≈600 |
| Noise level | dB(A) | ＜70 |

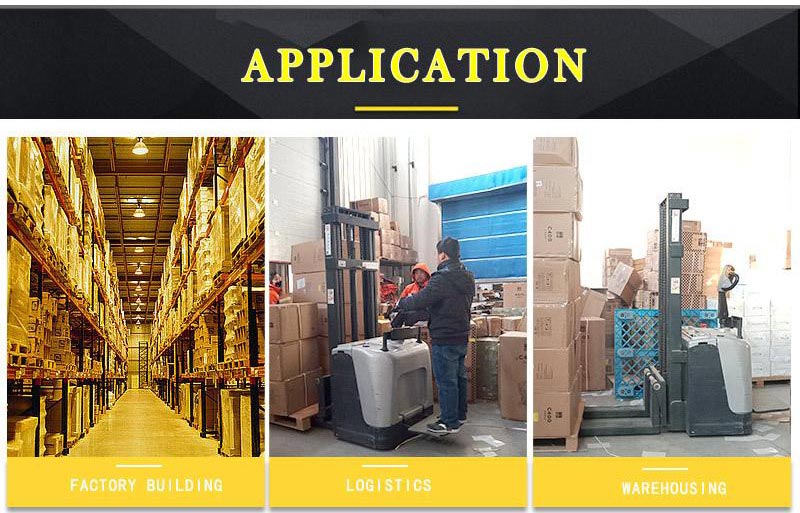

Battery pallet stacker is a variety of wheeled haulers that handle loading, unloading, stacking, and short-distance transport of palletized goods. The battery powered stacker has simple structure, flexible control, good micro-motion and high explosion-proof safety performance. The mobile pallet stacker is suitable for operation in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in elevated warehouses and workshops.
Battery pallet stacker is a variety of wheeled haulers that handle loading, unloading, stacking, and short-distance transport of palletized goods. The battery powered stacker has simple structure, flexible control, good micro-motion and high explosion-proof safety performance. The mobile pallet stacker is suitable for operation in narrow passages and limited spaces. It is an ideal equipment for loading and unloading pallets in elevated warehouses and workshops.

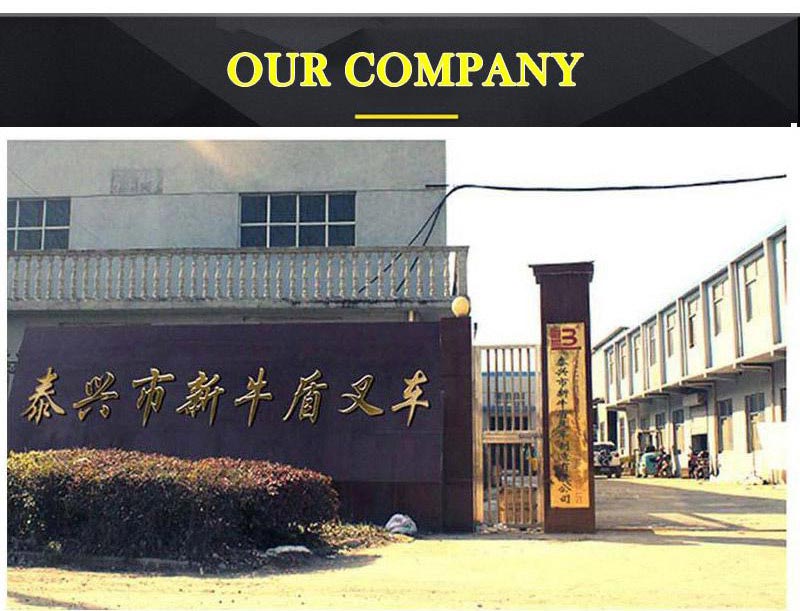

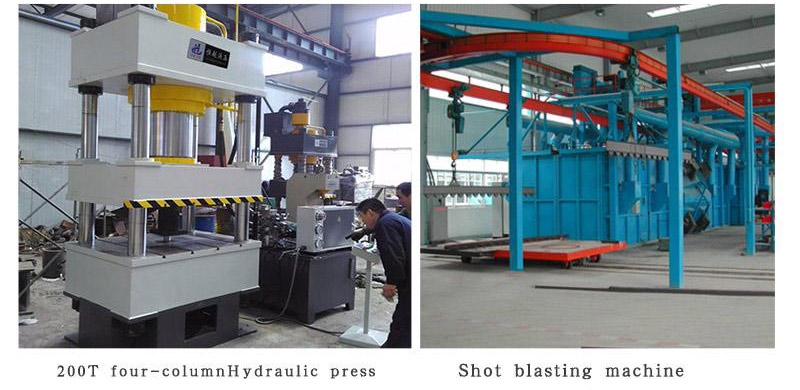

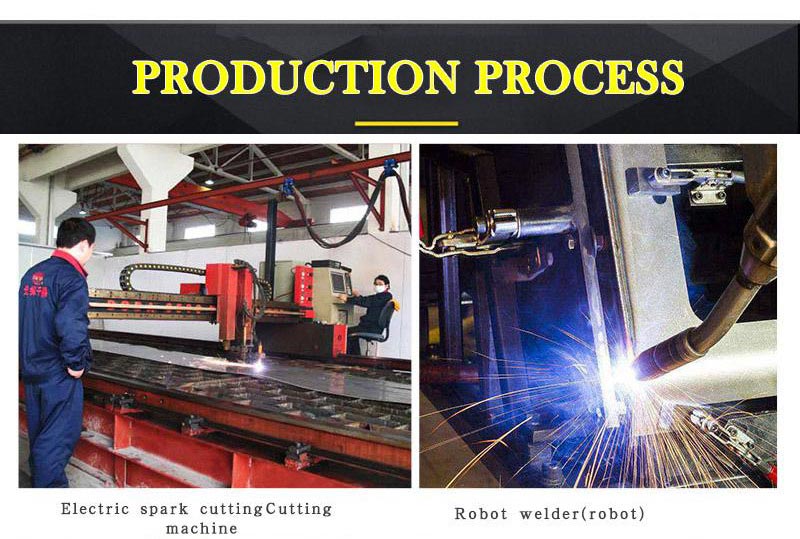

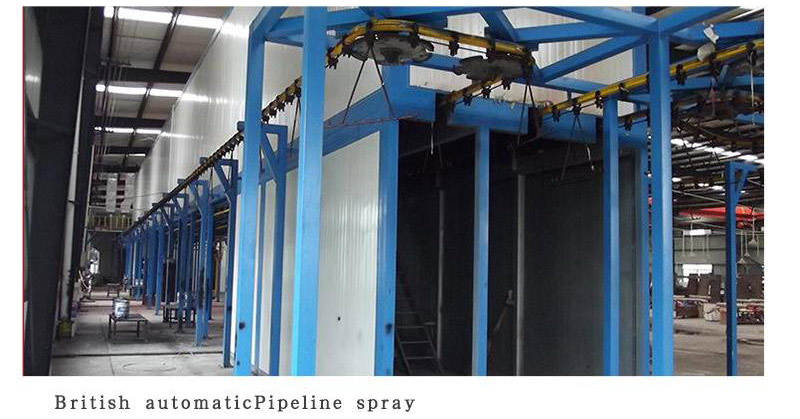

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.
1. How about the sample policy?
We can accept sample order for testing quality. But sample and express charge should be on customer’s account.
2. How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.
3. How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
4. Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.
5. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
6. Can I visit your company?
Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.
7. Do you offer custom design?
Custom design is surely available. We have very rich experience in customizing shelves.
Provide one-stop service such as free consultation, ordering, and after-sales service, providing customers with a worry-free buying environment.
