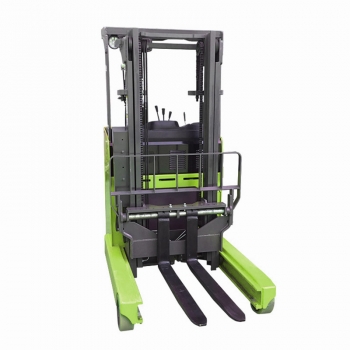

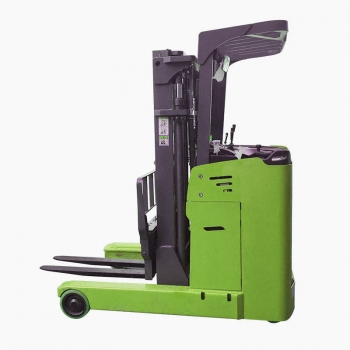

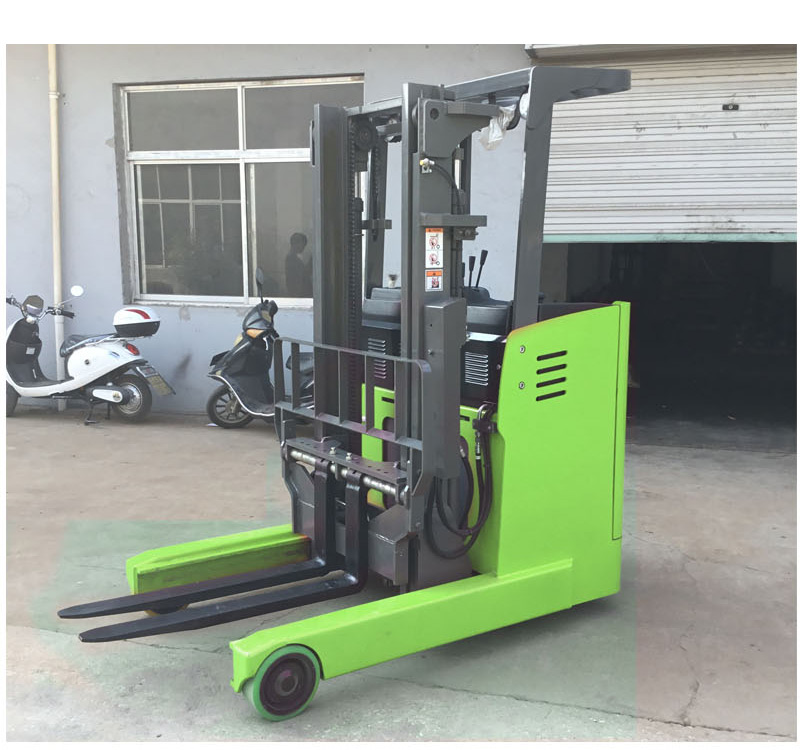

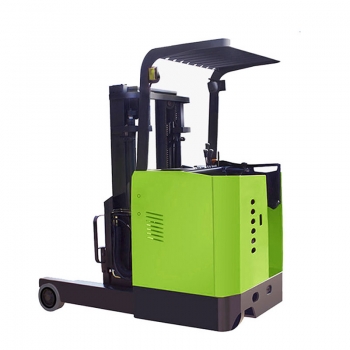

Reach electric forklift truck CQD-D

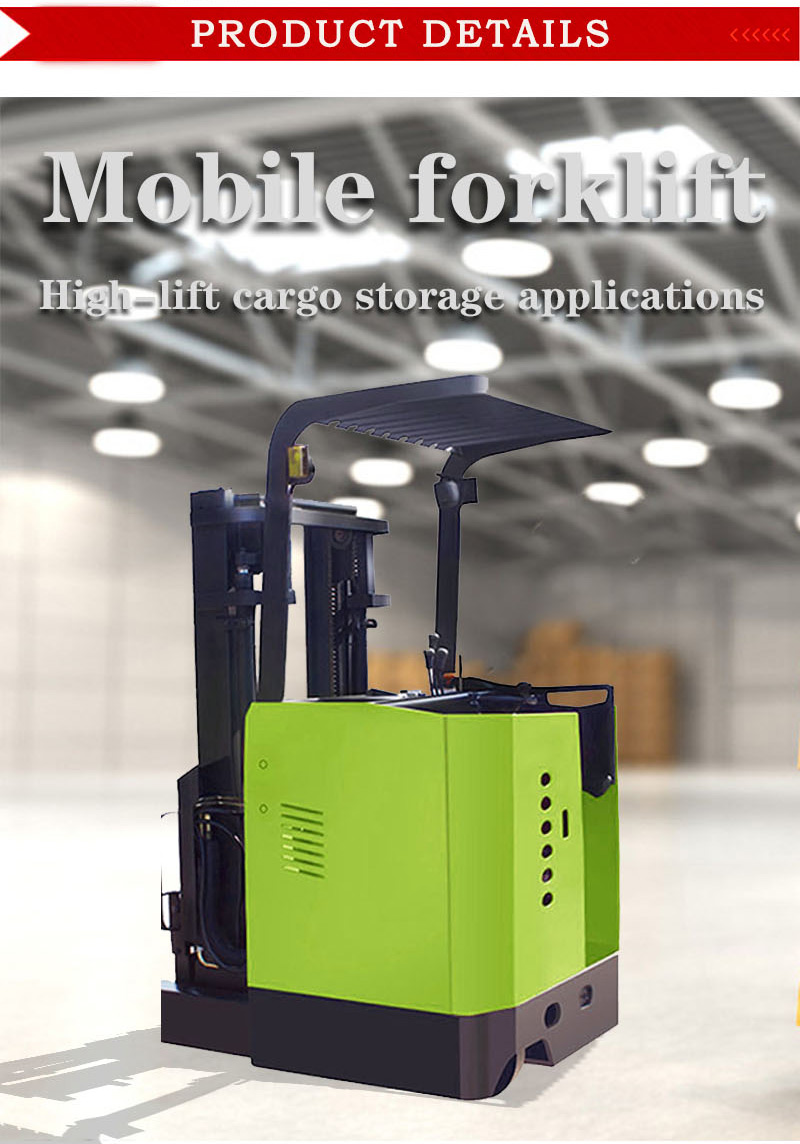

The forward-moving electric forklift truck is suitable for large-tonnage, high-lift cargo storage applications. It is suitable for a variety of pallets. It has the characteristics of the overall forward movement of the mast, a small turning radius, and th- Price : -
- Min. Order : 1
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download
| Name | Reach Electric Forklift | |
| Operation type | Stand-up | |
| model | CQD12D-30/CQD15D-30/CQD20D-30 | |
| Power type | All electric | |
| Load | KG | 1200/1500/2000 |
| Lifting height | H2(mm) | 3000 |
| Load center | C(mm) | 500 |
| Tire configuration | Polyurethane solid tire | |
| Mast tilt angle | 3/5 | |

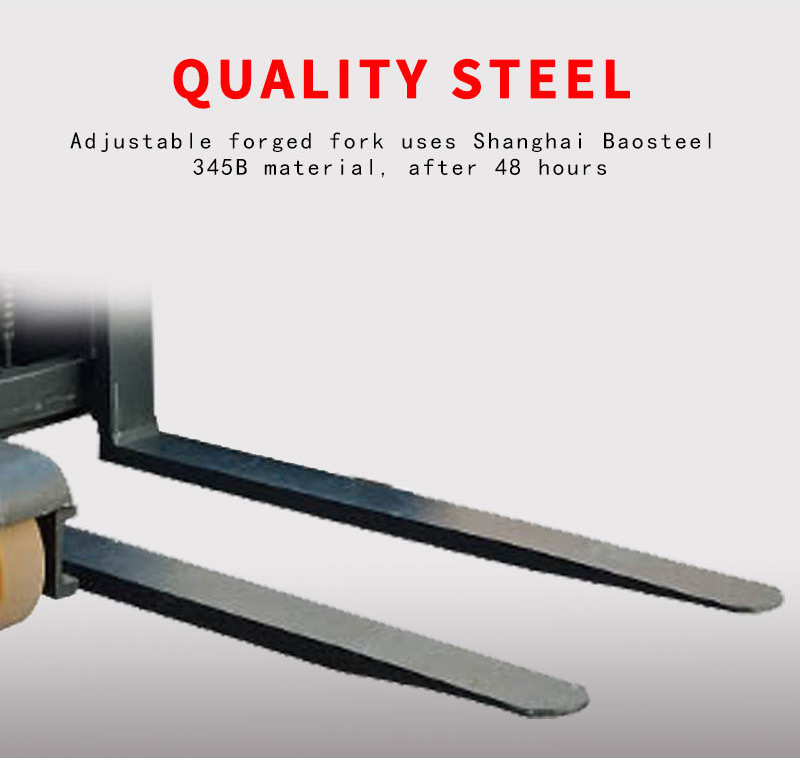

| Fork size | mm | 1070*100*35/1071*100*35/1070*122*40 |
| Fork adjustment range | mm | 210-705/210/705/270-705 |
| Mast forward distance | mm | 555/555/640 |
| Full length (including fork) | L(mm) | 2215/2215/2285 |
| Full width | S(mm) | 1090 |
| Mast closed height | H1(mm) | 2100 |
| Fork height when lifting | H(mm) | 3965 |
| Turning radius (outside) | Wa(mm) | 1600/1600/1750 |
| Overhead guard height | mm | 2280 |
| Minimum stacking aisle | mm | 2620/2620/2720 |
| Minimum ground clearance | mm | 70 |
| Travel speed | Km/h | 4/5 |
| Gradeability | % | 6/8, 6/8, 5/8 |
| Gross weight | KG | 2000/2200/2250 |
| Drive wheel | mm | 230*75 |
| Front wheel | mm | 210*85 |
| Balance wheel | mm | 150*50 |
| battery capacity | V/AH | 24/280, 24/400, 24/400 |
| Charger | V/A | 24/40, 24/50, 24/50 |
| Drive motor | KW | 2.5 |
| Lifting motor | KW | 3 |
| Drive control type | 2.5(AC) | |
| Walking speed regulation | Hall Accelerator | |
| brake | electromagnetic | |

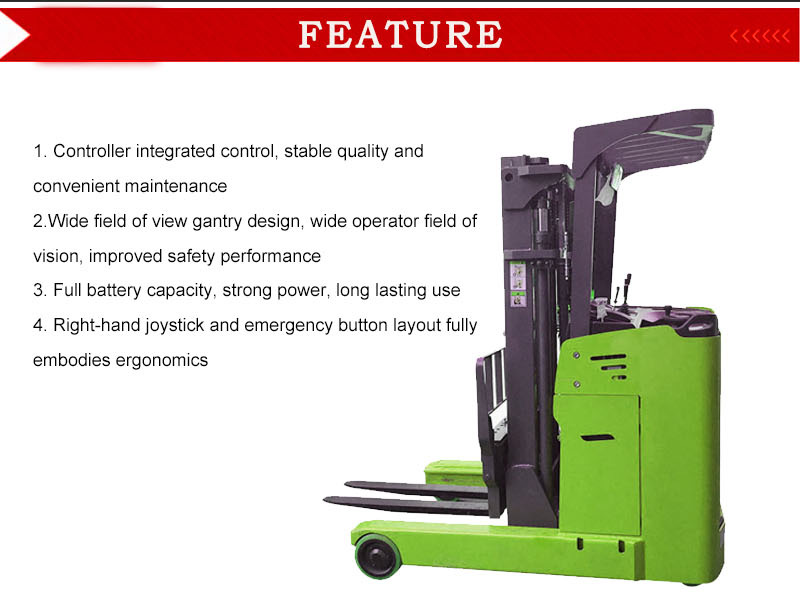

? The forward-moving electric forklift truck is equipped with CURTIS electronic control and multiple automatic protection systems.
? The EPS steering energy consumption of forward-moving electric forklift truck is reduced by ~ 20%, and the operation is precise, reducing driver fatigue and greatly improving productivity.

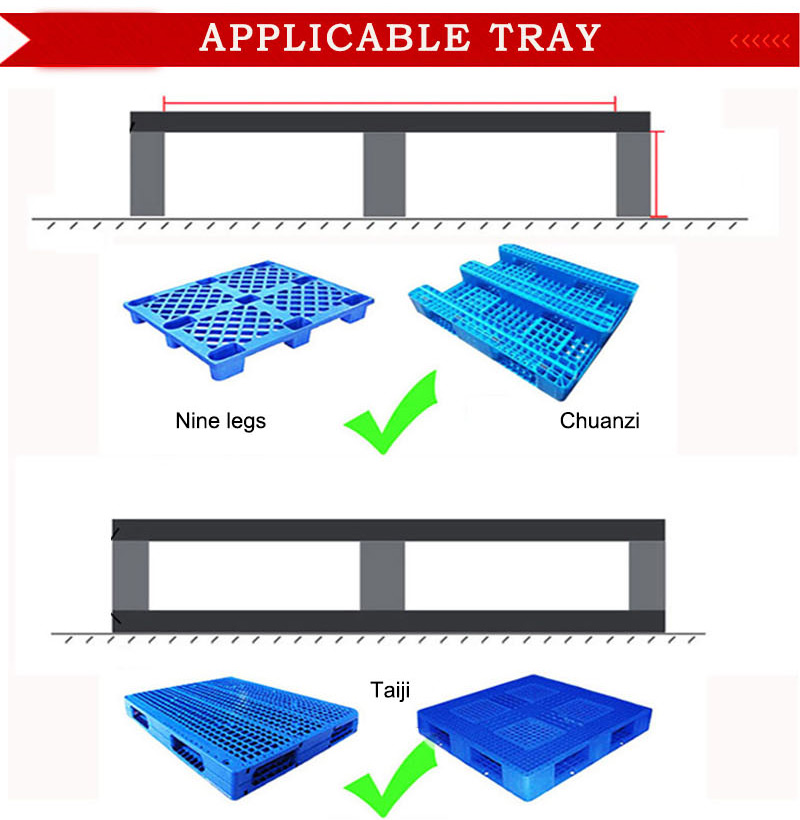

? The forward-moving electric forklift truck is suitable for large-tonnage, high-lift cargo storage applications. It is suitable for a variety of pallets. It has the characteristics of the overall forward movement of the mast, a small turning radius, and the obstacles at the bottom of the shelf can be ignored.
? The lifting lever of the current mobile electric forklift truck is in a safe lowering position. When the fork is lowered 10cm from the ground, the lowering speed automatically slows down, effectively preventing the goods from being damaged due to vibration. When the fork is raised to the highest position, the buffer system reduces the vibration of the mast and improves operator comfort.
? The forward-moving electric forklift truck uses a compact and powerful AC drive motor to achieve smooth starting without complicated acceleration operations. The carbon brushes and contactors are eliminated, thereby greatly reducing the maintenance cost of the forward-moving electric forklift truck.
