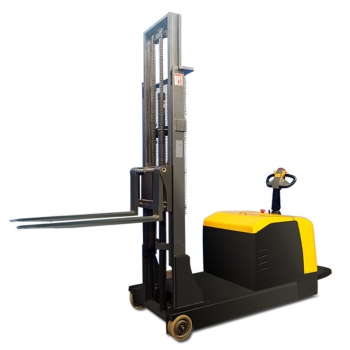

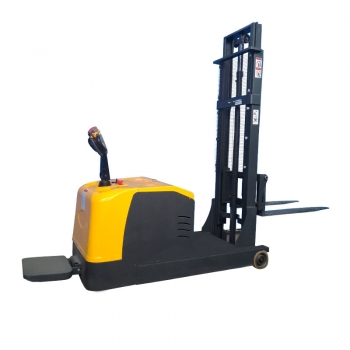

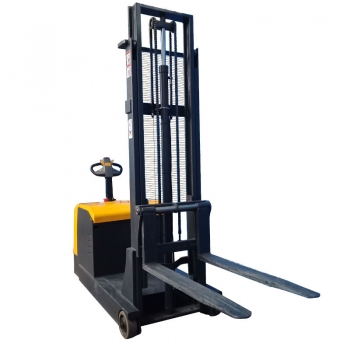

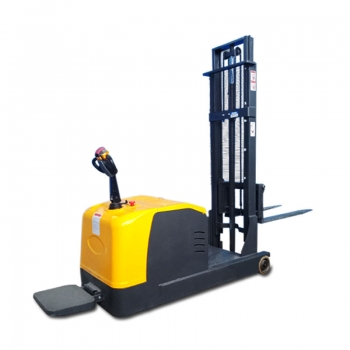

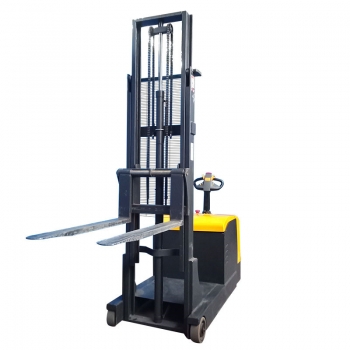

Balanced heavy electric stacker

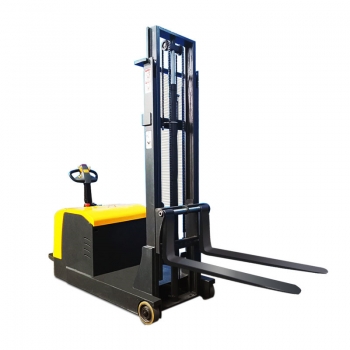

Walking station-driven counterbalanced all-electric hydraulic hand lifter stacke
Hydraulic hand lifter designed according to the user's special requirements for simultaneous work inside and outside the warehouse, electric forklift price?it can be used in single-sided pallets or double-sided pallets, especially for loading and unloadin- Price : -
- Min. Order : 1

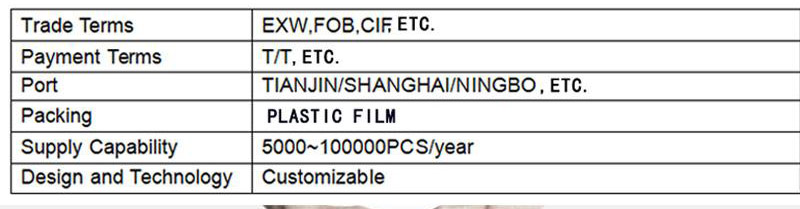

- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download
| model | LBCPD-10(C/H)-25-SB |
| Load | 1000 |
| Form of steel | C/H |
| Lifting height | 2500 |
| Frame static height | 2014 |
| The maximum height of the gantry work | 2500 |
| Load center distance | 500 |
| Front suspension | 130 |
| Front axle load (full load\no load) | 1170/420 |
| Rear axle load (full load\no load) | 860/3110 |
| Front track | 890 |
| Rear track | 612 |
| Before and after the tilt angle | 3/6 |
| Fork minimum clearance from the ground | 55 |
| Turning radius | 1600 |
| Minimum channel requirement | 3120 |
| Total length(No pedals) | 2660 |
| Total body width | 1000 |
| Body length | 1700 |
| Fork width | 210-700 |

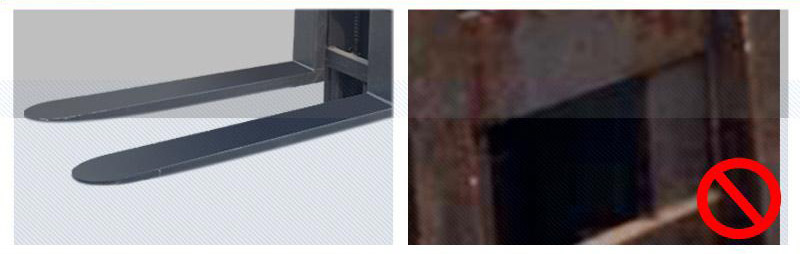

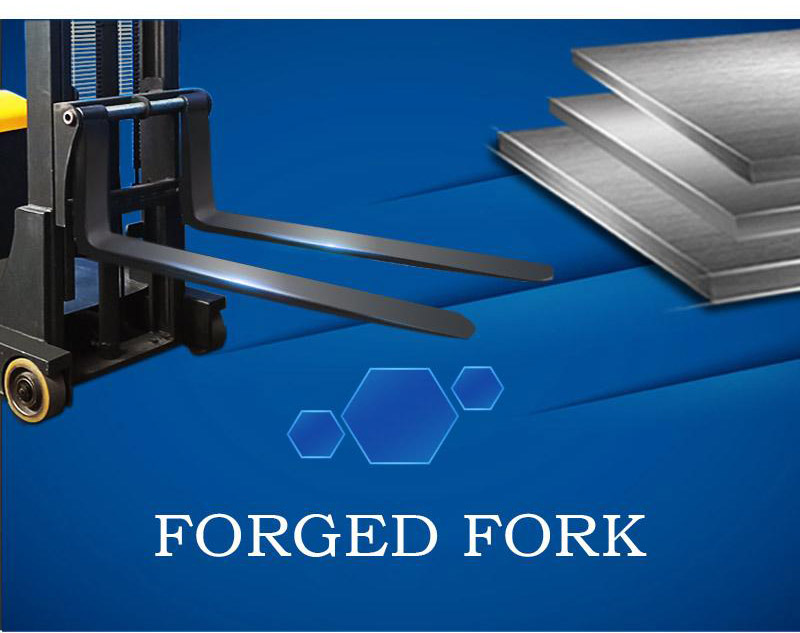

| Fork size (forging) | 1070*100*35 |
| Lifting speed (full load\no load) | 1.4/1.0 |
| Driving speed (full load\ no load) | 5500/5000 |
| Maximum gradient (full load\ no load) | 10/6 |
| Tire | (Polyurethane) |
| Driving method | (Standing steer type) |
| Braking method | (Electromagnetic brake) |

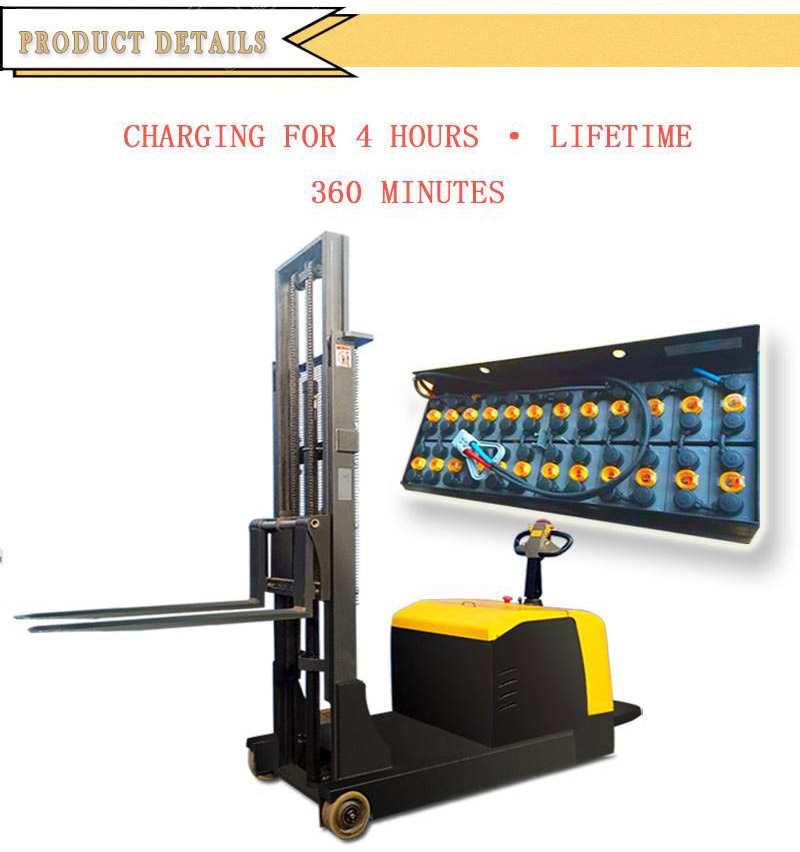

| Battery | 24/120*2P |
| Lift the motor | 3.3 |
| Walking motor | 1.5 |
| Hydraulic oil | 46＃ |
| Total weight | ≈1550 |
| Noise level dB | ＜70 |

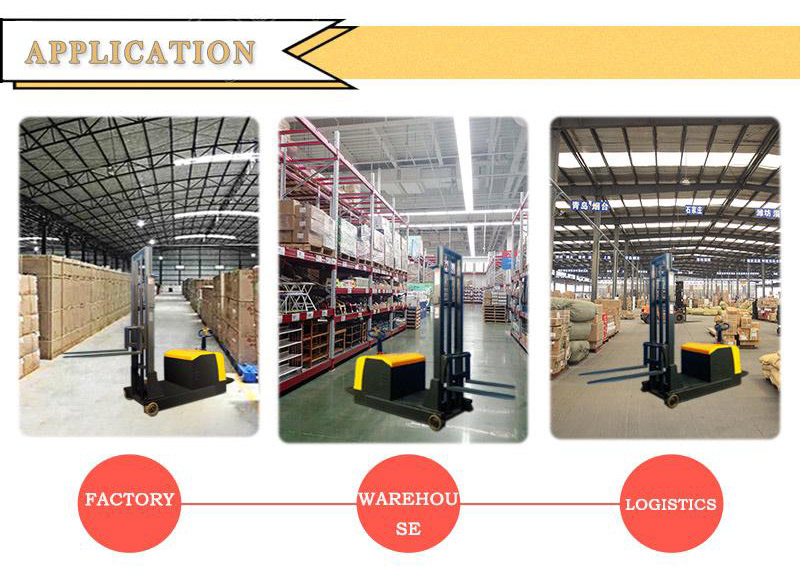

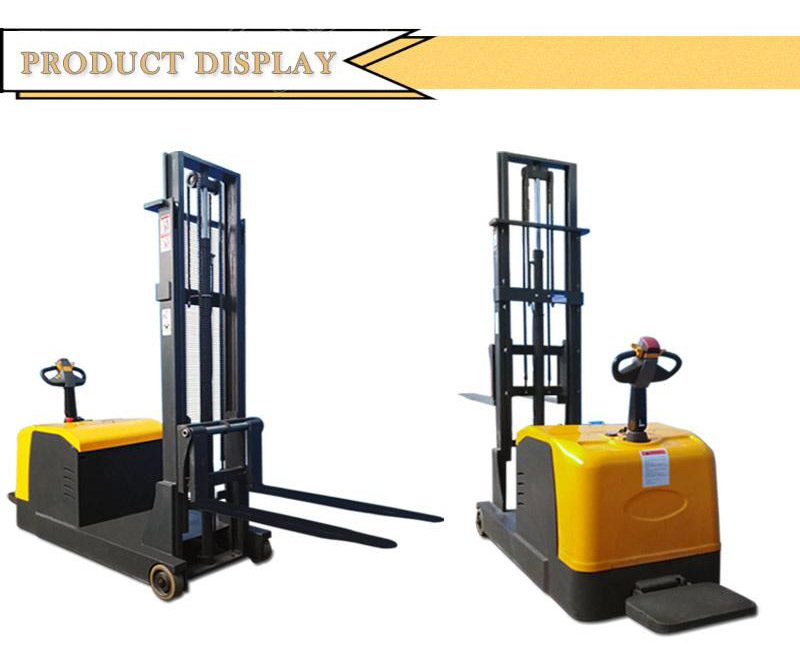

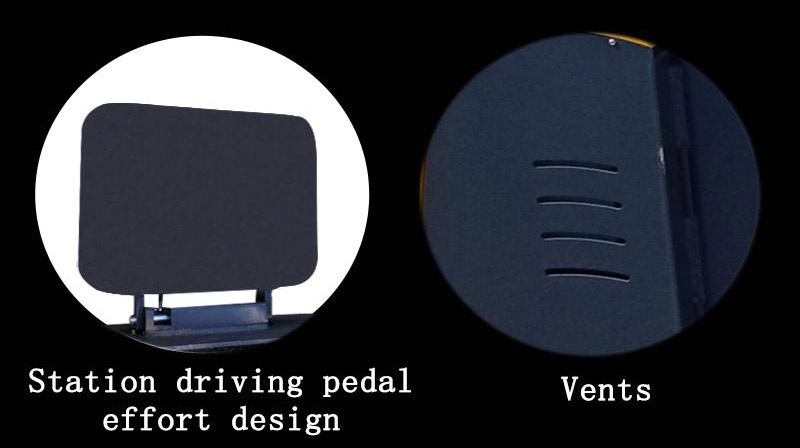

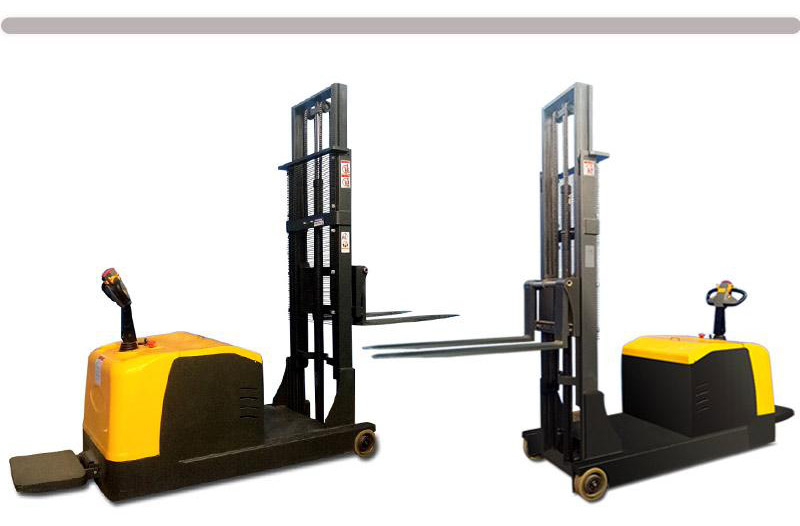

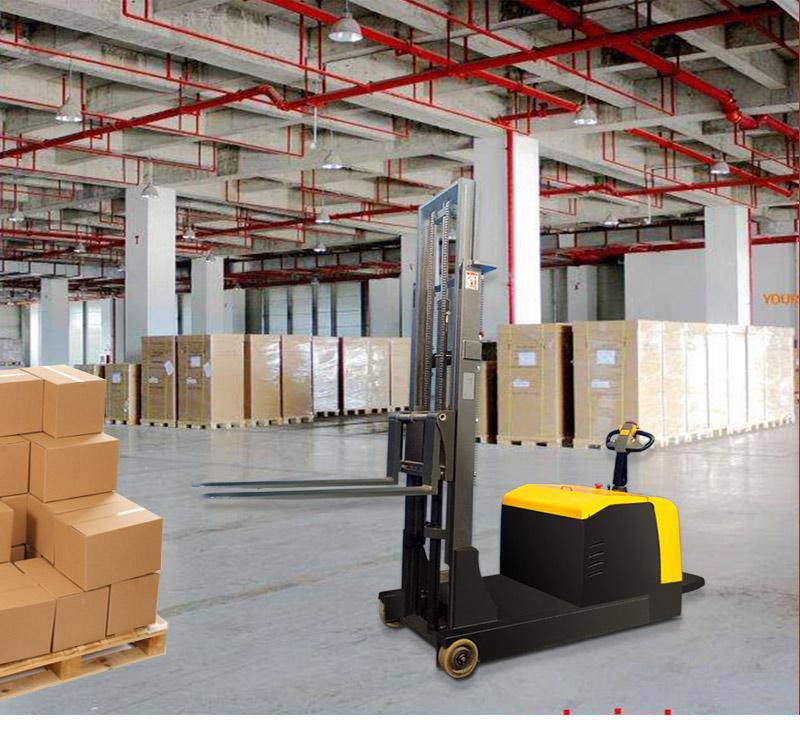

Hydraulic hand lifter designed according to the user's special requirements for simultaneous work inside and outside the warehouse, electric forklift price it can be used in single-sided pallets or double-sided pallets, especially for loading and unloading of trucks and containers.Walking control or retractable pedal control can greatly reduce the labor intensity of the driver's long distance handling.The versatile electronic integrated control system has a variety of control functions to make the operation safer and more reliable.
Hydraulic hand lifter designed according to the user's special requirements for simultaneous work inside and outside the warehouse, electric forklift price it can be used in single-sided pallets or double-sided pallets, especially for loading and unloading of trucks and containers.Walking control or retractable pedal control can greatly reduce the labor intensity of the driver's long distance handling.The versatile electronic integrated control system has a variety of control functions to make the operation safer and more reliable.

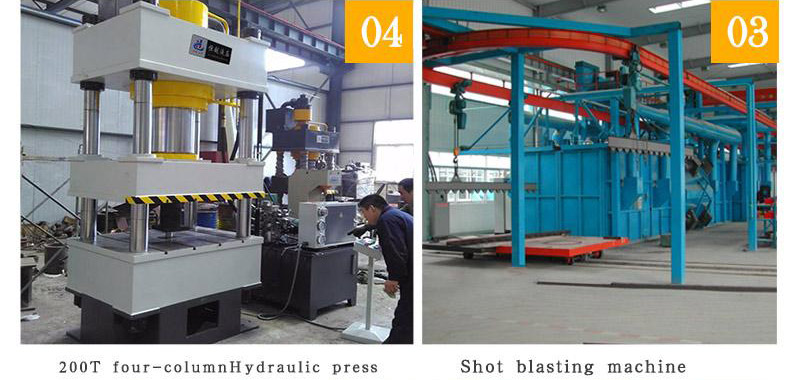

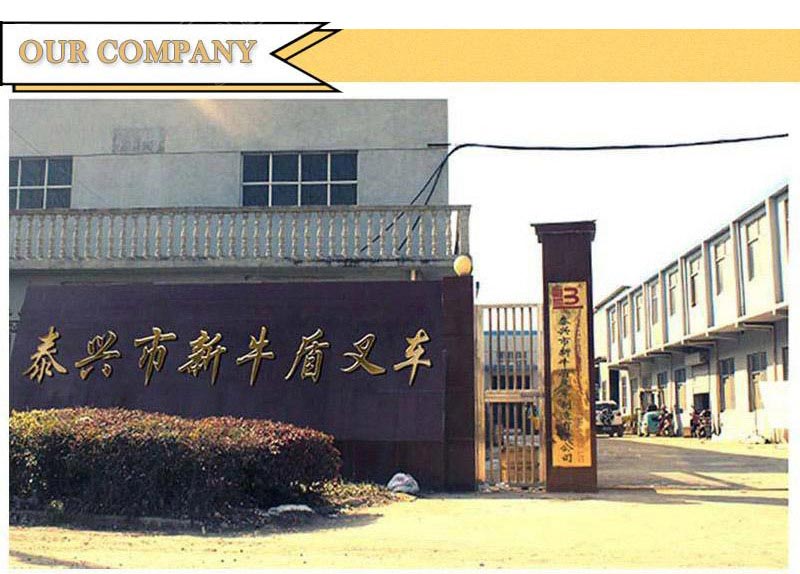

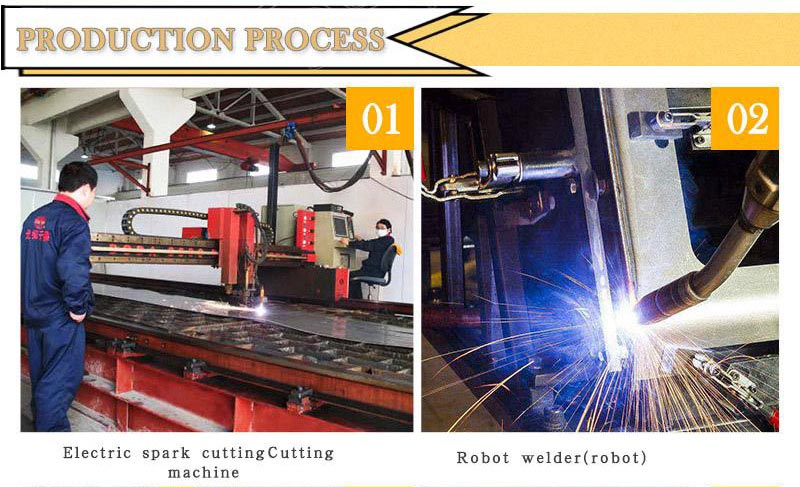

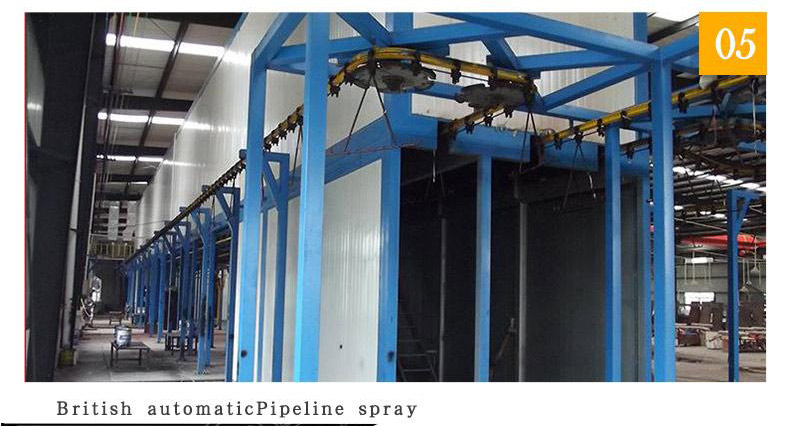

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.
1. Can I visit your company?
Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.
2. Do you offer custom design?
Custom design is surely available. We have very rich experience in customizing shelves.
3. Do you offer samples available?
Yes, samples are available. Sample lead time 3-5 days generally.
4. What’s the advantage of your company?
We are experienced manufacturers and overseas distributors. Our products have been exported to more than 110 countries. An independent research team focused on the design and production of material handling equipment. The professional service team will provide feedback to customers within 24 hours.
5. Why we can choose you?
Reliable - we are real companies, we strive for excellence
Professional - we provide the products you want
Factory - we have a factory, so the price is reasonable
Service - we have a strong sales team and after-sales team, so the service is very fast
6. How about the price? Can you make it cheaper?
The price depends on the item your demand (shape, size, quantity)
Beat quotation after receiving full description of the item you want
7. How can I get the after-service?
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems, we also send the spare parts, but you should pay.
For our range pallet truck it is lifelong maintenance.
Provide one-stop service such as free consultation, ordering, and after-sales service, providing customers with a worry-free buying environment.
