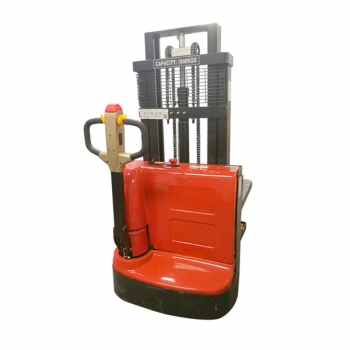

Walking all-electric stacker

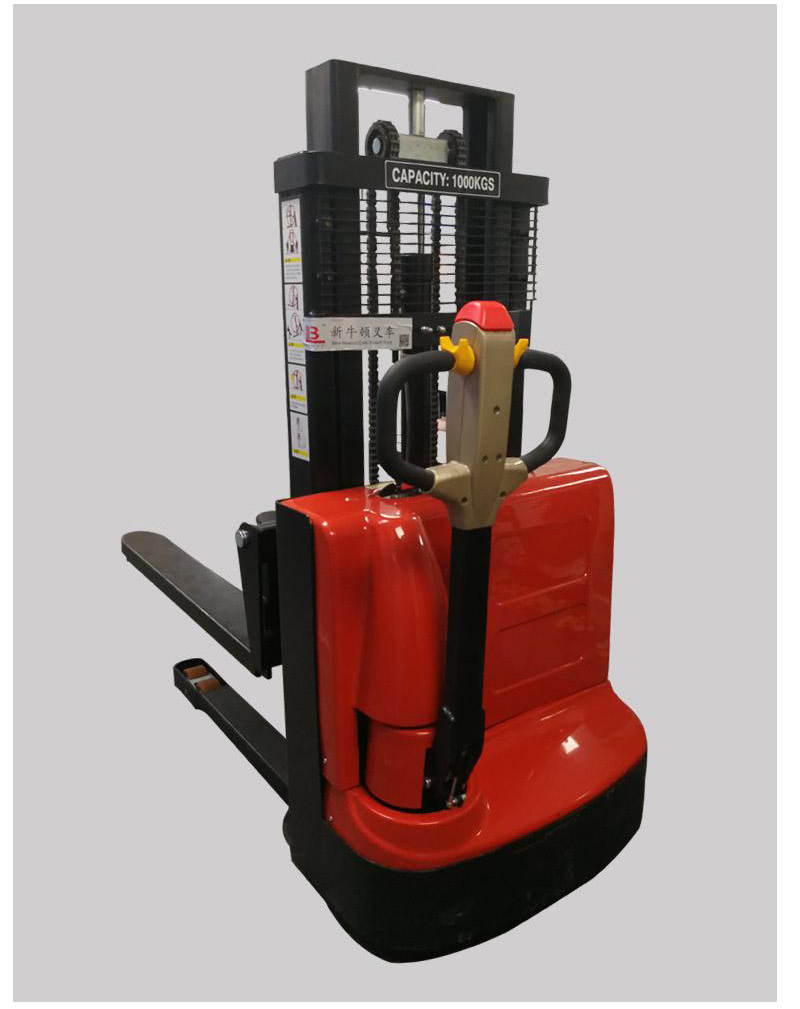

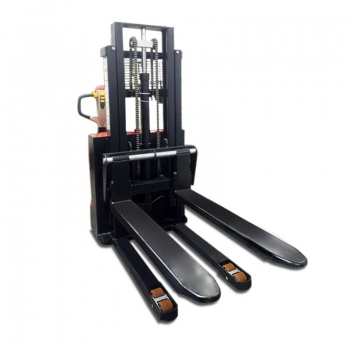

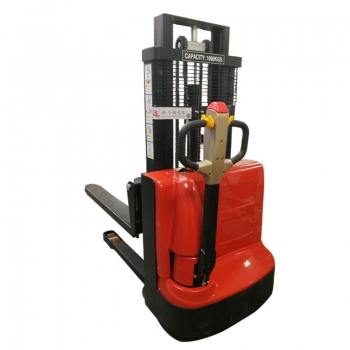

1.5 ton Walking full electric stacker truck automatic lifting hydraulic stacker
Walking type full electric stacker truck?automatic lifting hydraulic stacker?can automatically walk and automatically lift. The power stacker is equipped with an EPS electronic power steering system for flexible operation. The walkie stacker forklift uses- Price : -
- Min. Order : 1
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download

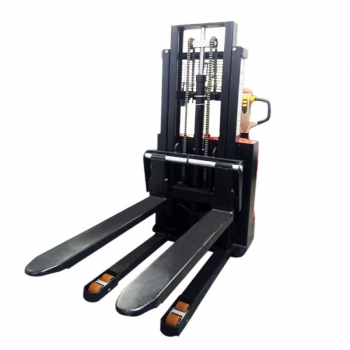

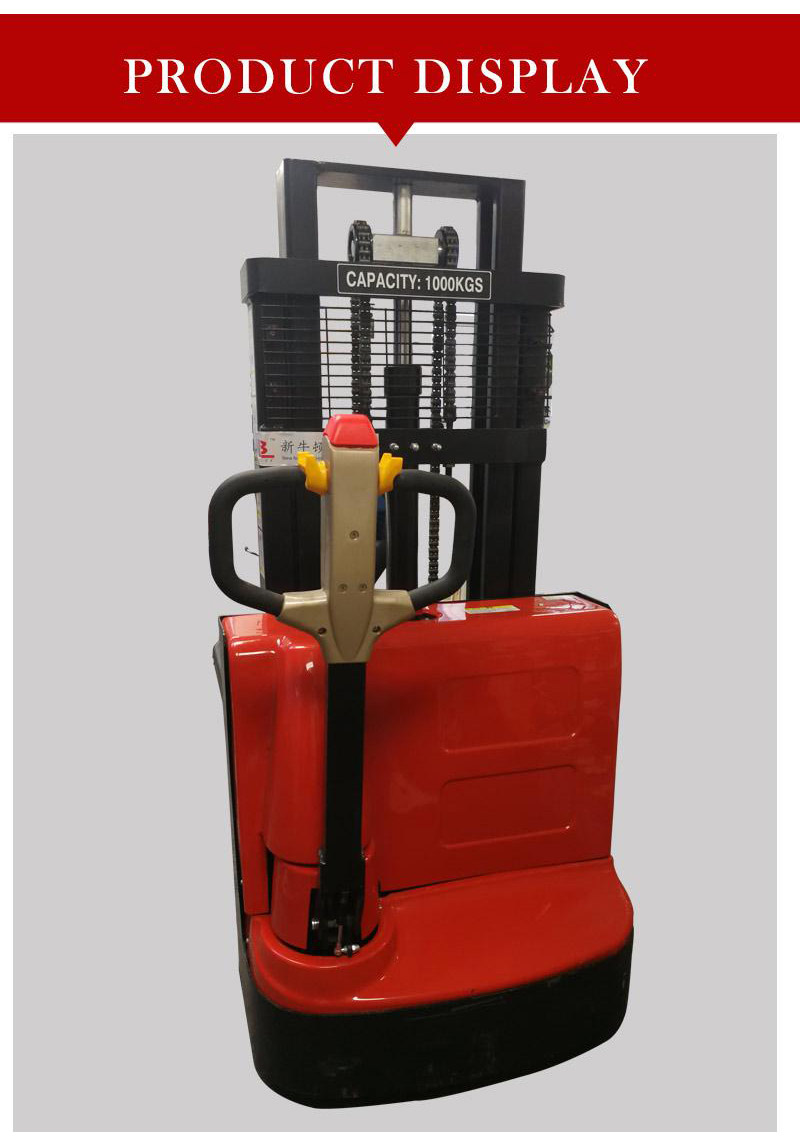

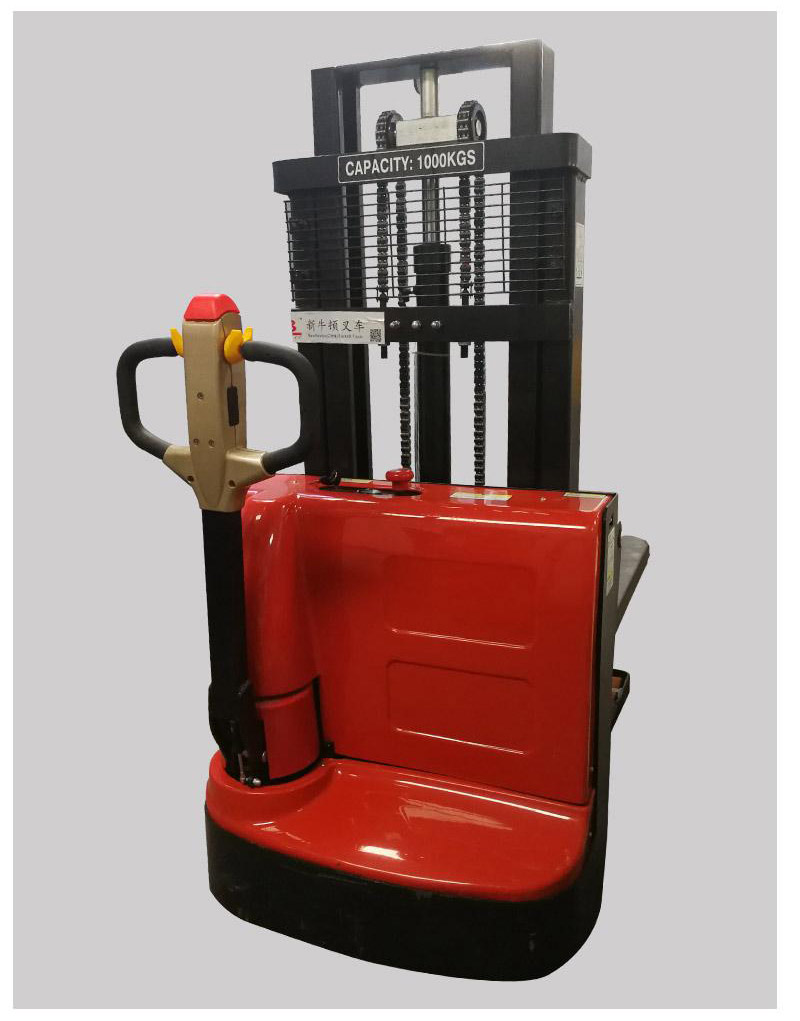

Walking type full electric stacker truck automatic lifting hydraulic stacker
| model | LBCDD-15(C)-30-WA |
| Material |
Q235 (red) |
| Load (kg) | 1500 |
| Highest point load (kg) |
900 |
| Power type | electric |
| Operation type | walk |
| Form of steel | C |
| Lifting height (mm) | 3000 |
| Frame static height (mm) | 1990 |
| After lifting the total height (mm) |
3450 |
| Load center distance (mm) | 500 |
| Fork minimum clearance from the ground(mm) | 30 |
| Fork clearance (mm) | 90 |
| Turning radius (mm) | 1280 |
| Minimum channel requirement (mm) | 2000 |
| Total body width (mm) | 800 |
| Overall length (mm) | 1860 |
| Fork width (mm) | 560/700 |
| Fork size ( mm) | 1150*160*55 |
| Leg length/width (mm) | 925/100 |
| Inside the leg (mm0 | 300/420 |
| Lifting speed (full load / no load) (mm/ s) | 100/150 |
| Falling speed(full load / no load) (mm/ s) | 150/130 |
| Driving speed (full load / no load) (m / h) | 4000/4200 |
| Maximum gradient (full load / no load) (°) | 3/11 |

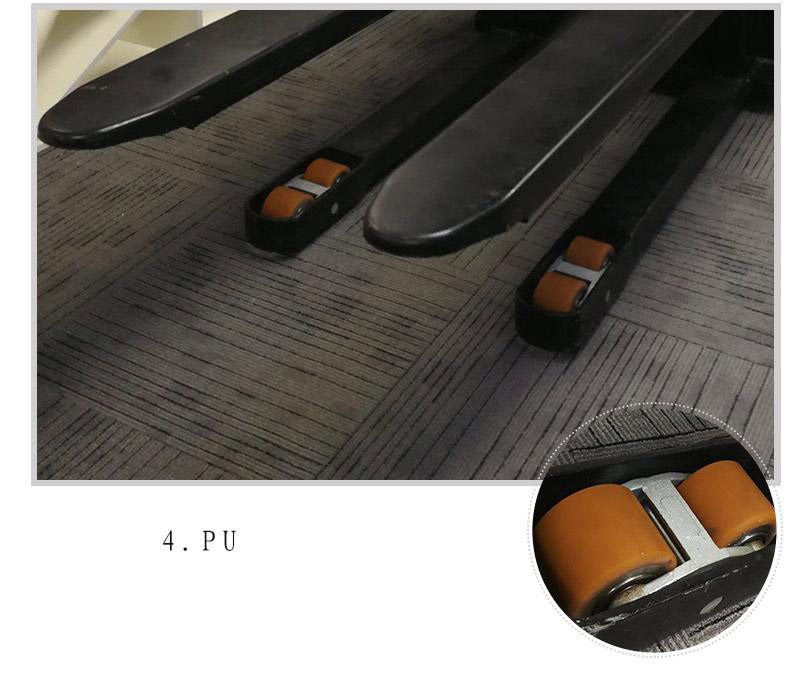

| Tire | Polyurethane |
| Tire size (drive wheel/load wheel/balance wheel) (mm) | φ210*75/80*70/115*55 |
| Battery (V/AH) |
24/80 |
| Battery size (mm) | 361*170*250 |
| Lift the motor |
1.5KW |
| Walking motor | 0.75KW |
| Hydraulic oil | 46# |
| Steering type | mechanical |
| Total Weight(KG) | ≈500 |
| Noise level dB (A) | <74 |
Walking type full electric stacker truck automatic lifting hydraulic stacker can automatically walk and automatically lift. The power stacker is equipped with an EPS electronic power steering system for flexible operation. The walkie stacker forklift uses high-quality cylinders for long service life and reduced maintenance costs.
Walking type full electric stacker truck automatic lifting hydraulic stacker can automatically walk and automatically lift. The power stacker is equipped with an EPS electronic power steering system for flexible operation. The walkie stacker forklift uses high-quality cylinders for long service life and reduced maintenance costs.

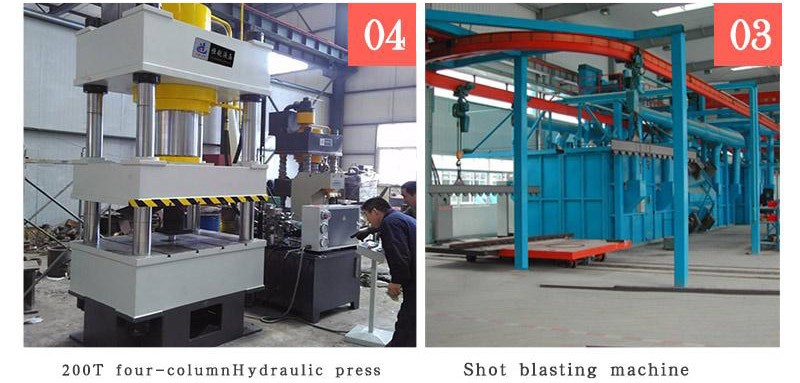

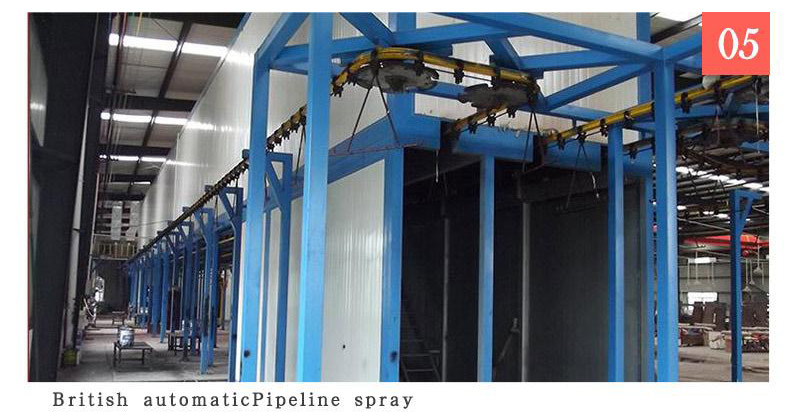

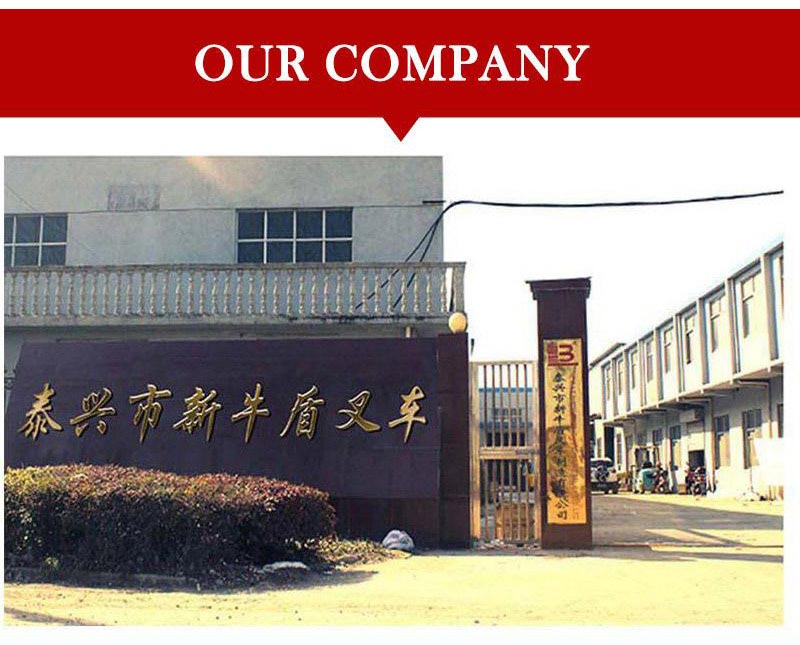

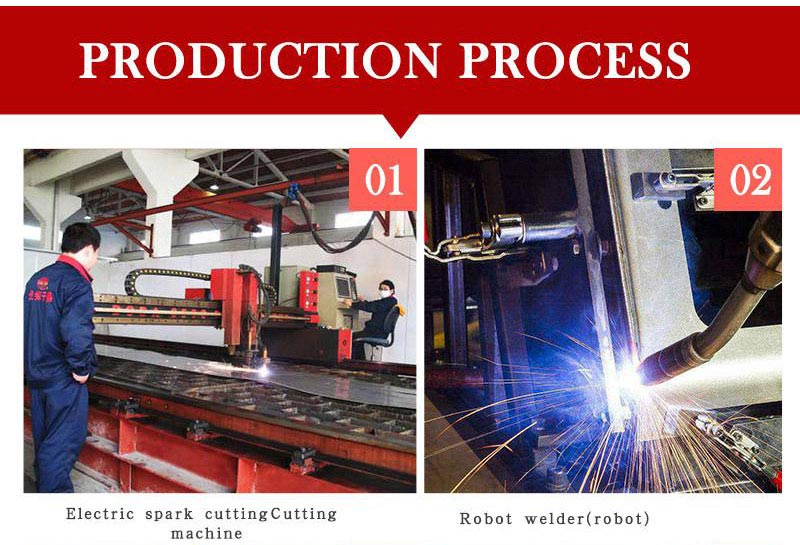

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.
