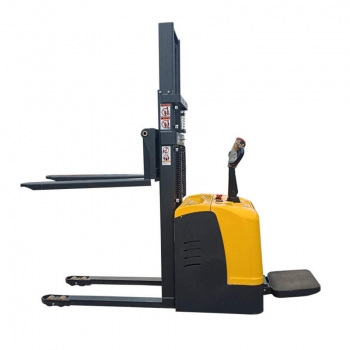

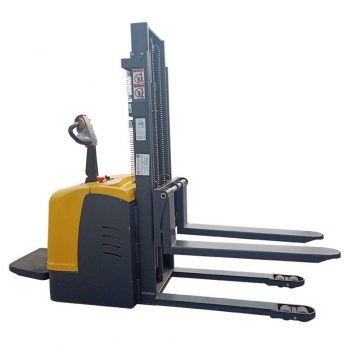

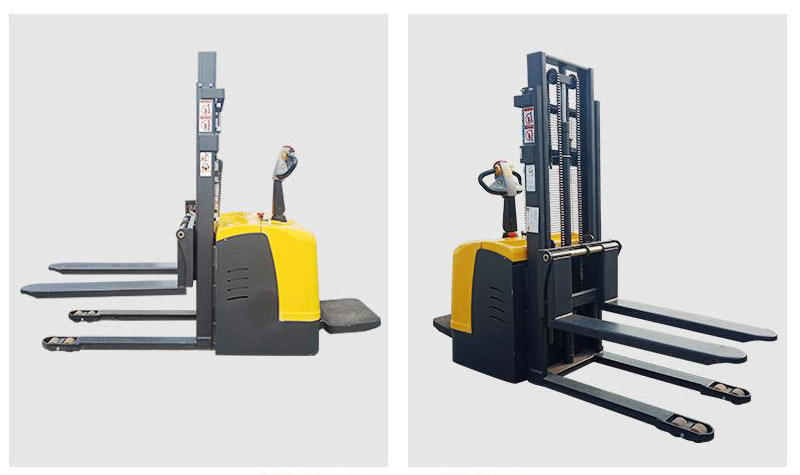

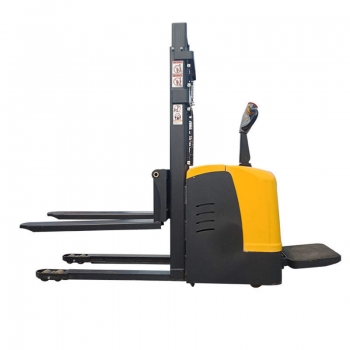

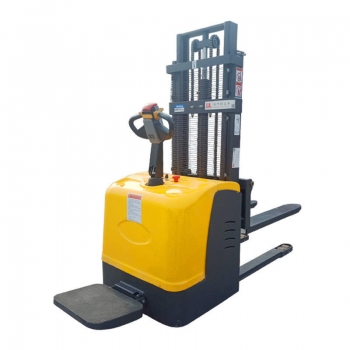

Station drive full electric stacker
Electric stacker suppliers provides stepless speed control of electric stacker
The vertical or horizontal position of the handle of the ride on pallet stacker is in a braking state, which improves safety. The electric stacker suppliers provides a safe power-off button for the stand up electric forklift.- Price : -
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like
- Video
- Description
- Reviews
- Download
Electric stacker suppliers provides stepless speed control of ride on pallet stacker
New Newton (Taizhou) forklift truck co.,ltd is a global company specializing in the design, manufacture and service of electric storage equipment and forklifts. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. With high-tech R&D center and provincial-level technology center, we have a strong global supplier team, a lean and efficient production support system and a sales and service-oriented molecular company to provide high-quality products for global users. and service.

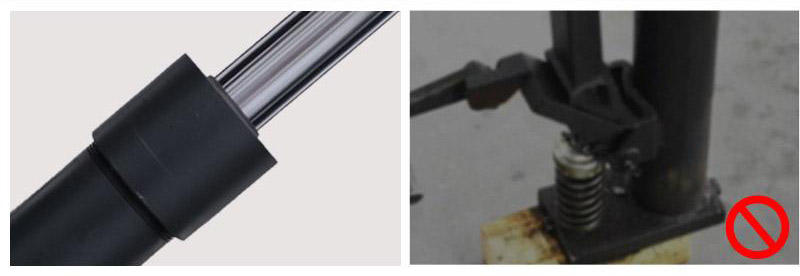

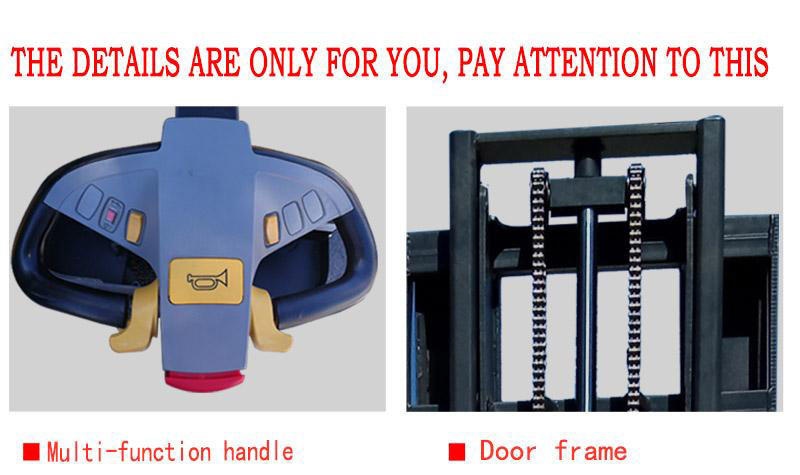

The vertical or horizontal position of the handle of the ride on pallet stacker is in a braking state, which improves safety. The electric stacker suppliers provides a safe power-off button for the stand up electric forklift. The stepless shift control handle of the ride on pallet stacker makes the operation simpler. The electric stacker suppliers provides a built-in pressure relief valve for the stand up electric forklift. The overload does not improve performance and is safer. The simplified design of the ride on pallet stacker line makes maintenance more convenient. The electric stacker suppliers provides the stand up electric forklift with Hall sensor to reduce the wear of electronic components and has a long service life.
| Model | unit | LBCDD-10/15/20C/H)-16/20/25/30/35-SD | LBCDD-10/15/20C/H)-40/45/50/55-SD |
| Load | KG | 1000/1500/2000 | 1000/1500/2000 |
| Form of steel | C/H | C/H | |
| Lifting height | mm | 1600/2000/2500/3000/3500 | 4000/4500/5000/5500 |
| Frame static height | mm | 2090/1590/1840/2090/2340 | 2410/2090/2910/3410/3910 |
| After lifting the total height | mm | 2090/2410/2910/3410/3910 | 4760/5260/5760/6260 |
| No. of front / rear wheels(x=drive) | 個 | 4/2+1X | 4/2+1X |
| Size of riving wheel / load bearing wheel / auxiliary wheel | mm | Φ250*80/Φ100*50/Φ80*70 | Φ250*80/Φ100*50/Φ80*70 |
| Load center distance | mm | 500 | 500 |
| Fork minimum clearance from the ground | mm | 40 | 40 |
| Turning radius | mm | 1600 | 1600 |
| Minimum channel requirement | mm | 2464 | 2464 |

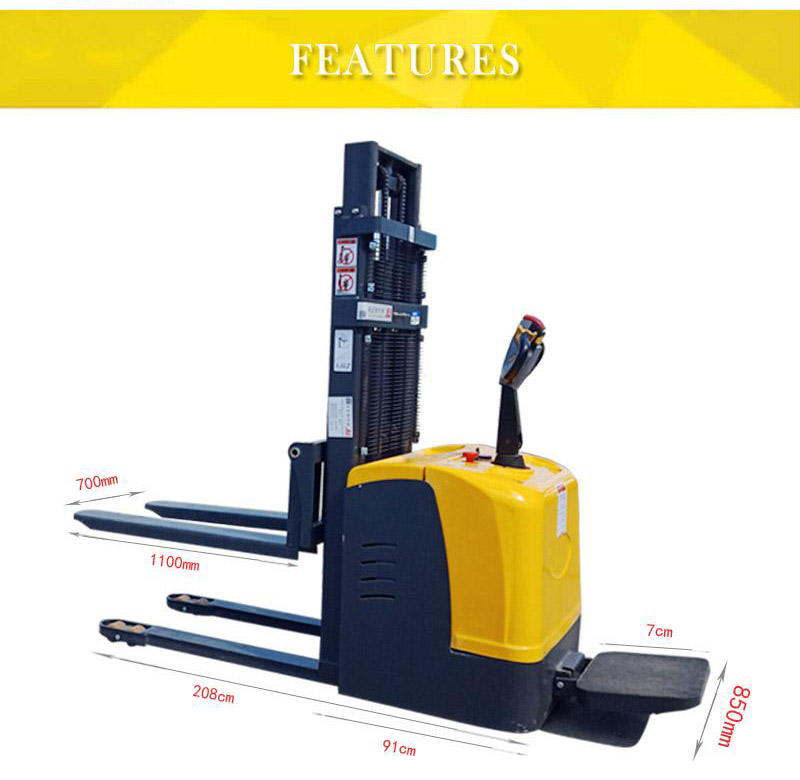

| Total body width | mm | 850 | 850 |
| Total body length(include footboard) | mm | 2140 | 2140 |
| Fork width | mm | 700 | 690 |

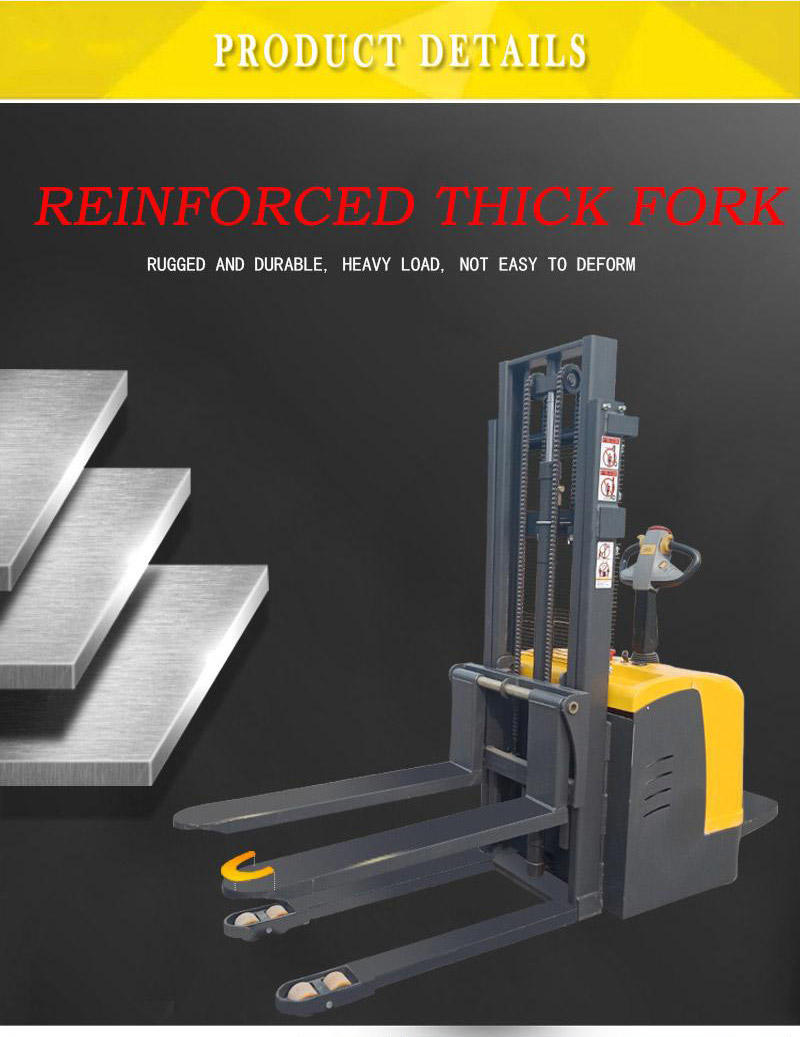

| Fork size | mm | 1100*170*60 | 1100*170*60 |
| Minimum height of fork off the ground | mm | 90 | 90 |
| Fork leg width | mm | 100 | 100 |
| Body height from the ground | mm | 30 | 30 |
| Lifting speed(full load/no load) | mm/s | 100/80 | 100/80 |
| Decline speed(full load/no load) | mm /s | 200/150 | 200/150 |
| Driving speed(full load/no load) | m / h | 5600/4000 | 5600/4000 |
| Maximum gradient(full load/no load) | ° | 10/6 | 10/6 |
| Tire | Polyurethane | Polyurethane | |
| Driving method | Station drive | Station drive | |
| Braking method | Electromagnetic brake | Electromagnetic brake | |
| Battery | V-AH | 24V/120/210/240 | 24V/240 |
| Lifting motor | KW | 3 | 3 |
| Walking motor | KW | 1.5 | 1.5 |
| Hydraulic oil | 46＃ | 46＃ | |
| Total weight | KG | ≈900/1070/1100 | ≈900/1070/1100 |
| Noise level | dB(A) | ＜70 | ＜70 |
The vertical or horizontal position of the handle of the ride on pallet stacker is in a braking state, which improves safety. The electric stacker suppliers provides a safe power-off button for the stand up electric forklift. The stepless shift control handle of the ride on pallet stacker makes the operation simpler. The electric stacker suppliers provides a built-in pressure relief valve for the stand up electric forklift. The overload does not improve performance and is safer. The simplified design of the ride on pallet stacker line makes maintenance more convenient. The electric stacker suppliers provides the stand up electric forklift with Hall sensor to reduce the wear of electronic components and has a long service life.
FAQ
1. How about the sample policy?
We can accept sample order for testing quality. But sample and express charge should be on customer’s account.
2. How long does it take to execute my order?
Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.
3. How can I know the completion of my order?
Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.
4. Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.
5. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
6. Can I visit your company?
Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.
7. Do you offer custom design?
Custom design is surely available. We have very rich experience in customizing shelves.
