Station driving electric truck

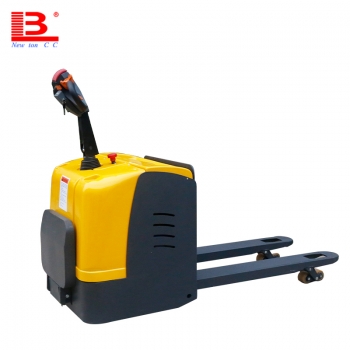

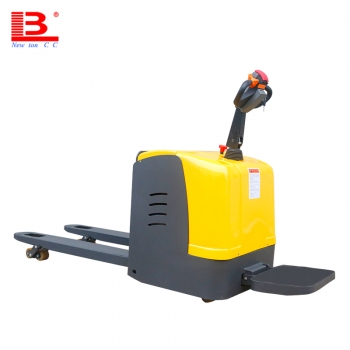

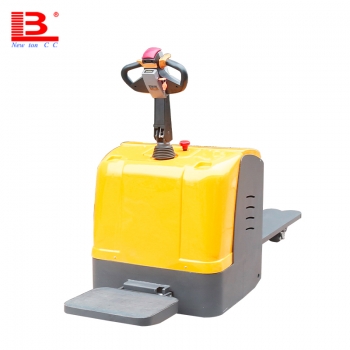

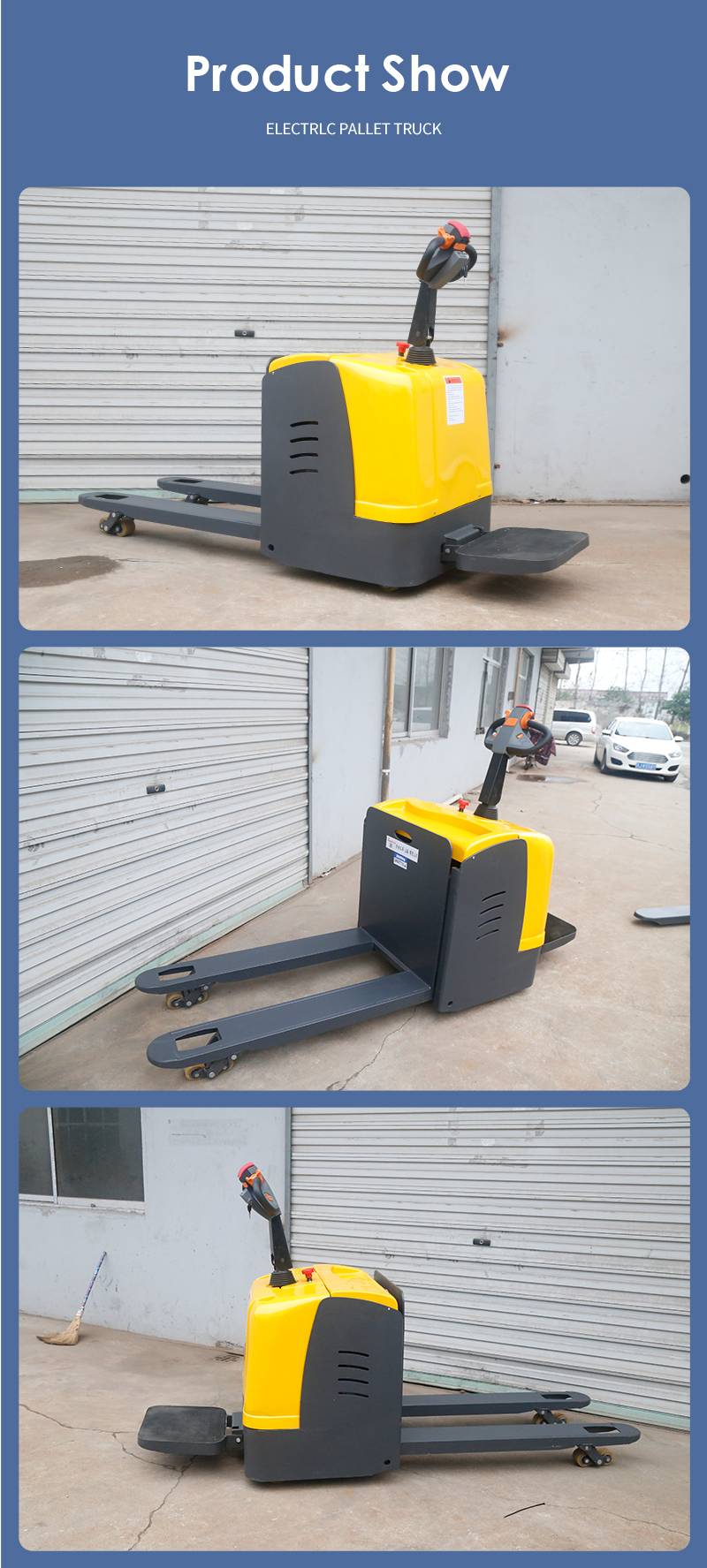

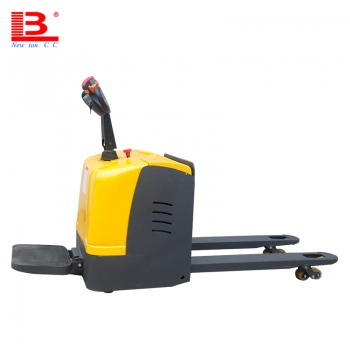

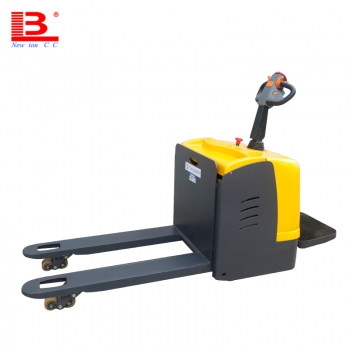

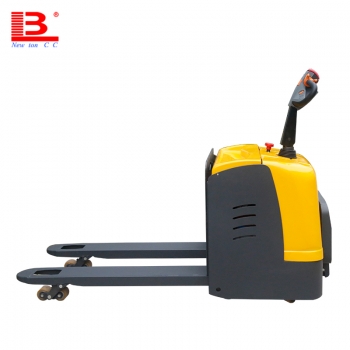

small electric lift platform 2ton 3ton drivable pallet jack

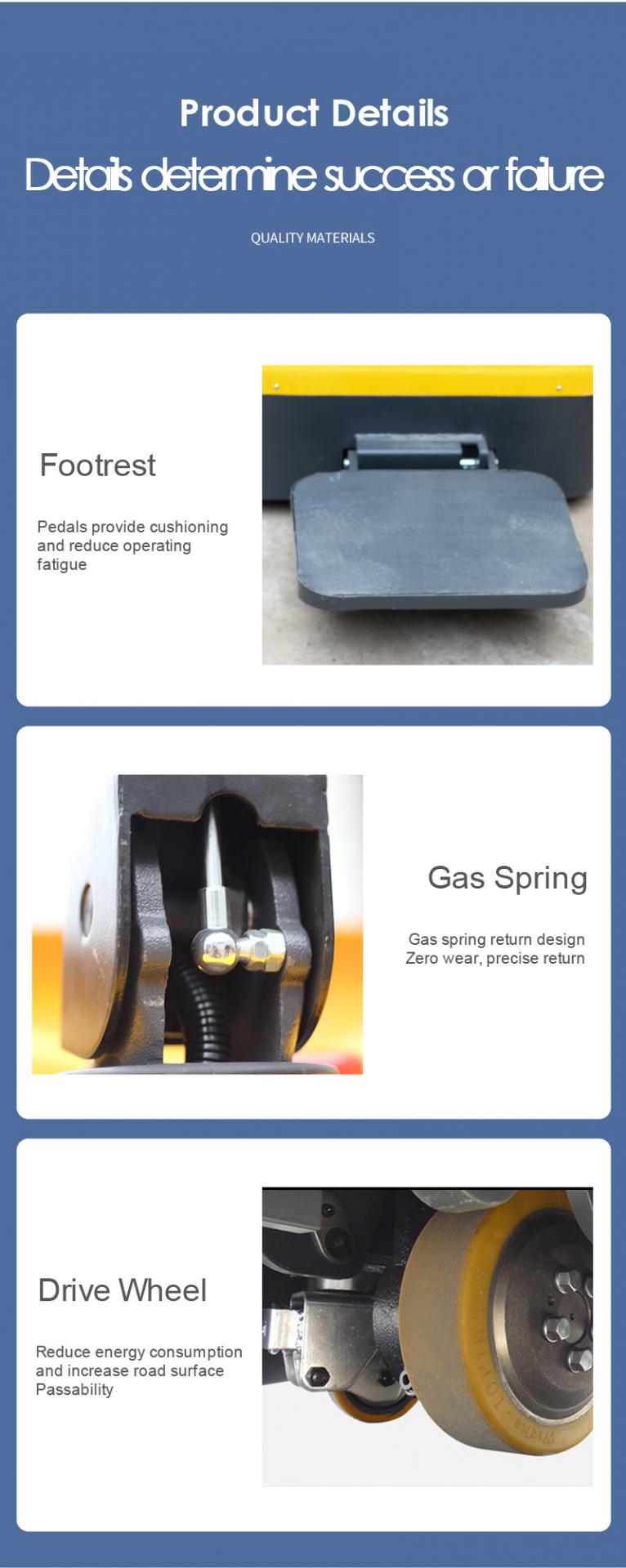

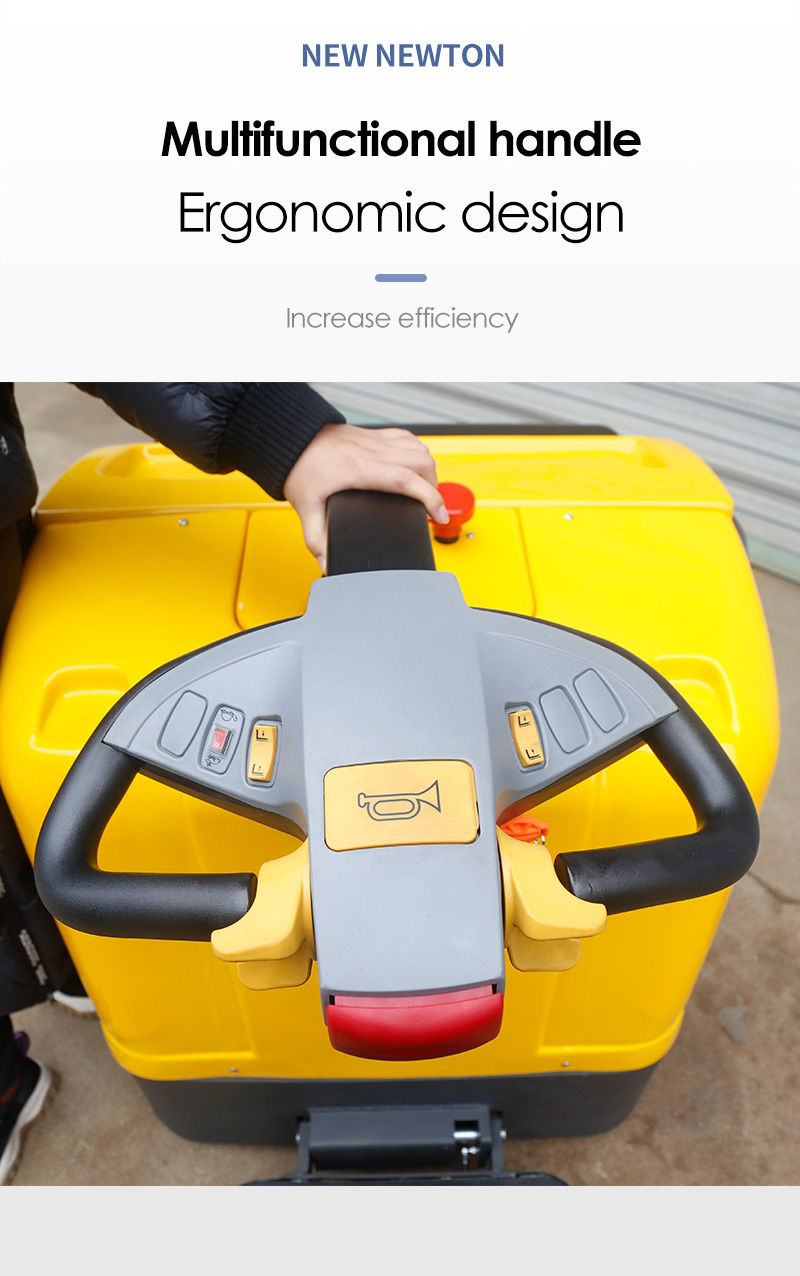

The electric driving handle of the ride on pallet jack is designed with clear functions, 99% fits the ergonomic design, the shock absorber stands the pedal, the operation is comfortable, and the fatigue is 0.Product Specification:
- Price : -
- Min. Order : 1
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download
| model |
LBCBD-20/25/30/40-540/685-SB CBD-20/25/30/40-540/685-SB |
| Load (kg) | 2000/2500/3000/4000 |
| Maximum fork height from the ground (mm) |
210 195 |
| Fork down the surface from the ground (mm) |
85 <\90 |
| Load center distance (mm) | 600 |
| Wheelbase center (mm) |
1305/1355 1350 |
| Fork minimum clearance from the ground(mm) |
30 20 |
| Turning radius (mm) |
1730/1770 2200 |
| Minimum channel requirement (mm) |
2120/2170 2400 |
| Total body width (mm) |
800 820 |
| Total body length (mm) |
1920/1970 1880 |
| Total body height (include handle)/(exclusive handle) (mm) | 955/1350 |
| Length of wagon (mm) |
790 680 |
| Fork width (mm) |
540/685 550/685 |
| Fork size ( mm) |
1150*185*55/1200*185*55 1200*180*60 |
| Lifting speed (full load / no load) (mm/ s) |
60/56 35/23 |
| Falling speed (full load / no load) (mm/ s) |
57/59 30/38 |
| Driving speed (full load / no load) (km / h) |
8/6 5.5/4.5 |
| Maximum gradient (full load / no load) (mm / s) |
7/5 8/5 |
| Size of wheel (front /rear/ balance) (mm) | 250*80/80*60/125/50 |
| Number of front/rear wheels (x=drive | 4/2+x |
| Front track (mm) | 505 |
| Rear track (mm) |
700 690 |
| Tire | Polyurethane |
| Driving method | Station drive |
| Braking method | Electromagnetic brake |

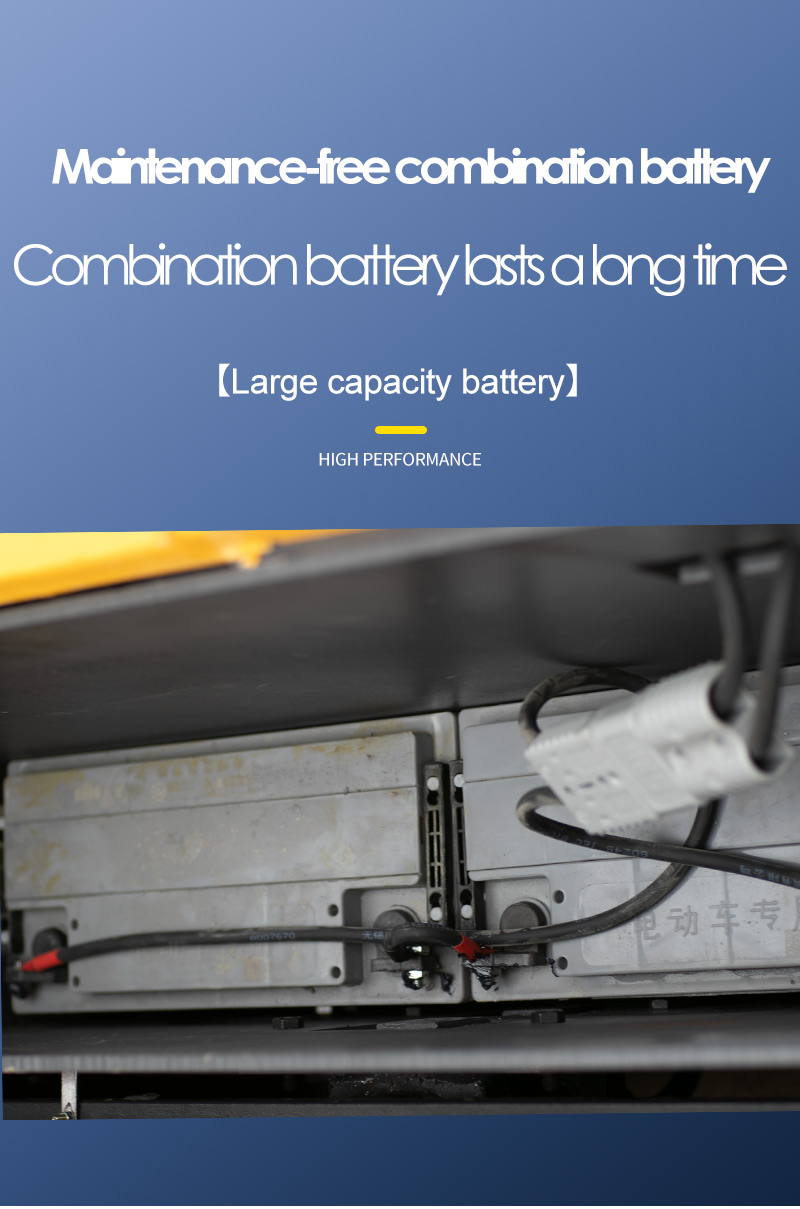

| Battery (V/AH) | 24V/210AH |
| Battery weight (kg) |
260 120 |
| Lift the motor |
AC 2KW DC 2.2KW |
| Walking motor |
AC 1.5KW DC 1.2KW |
| Hydraulic oil | 46# |
| Total Weight(KG) |
≈790 ≈680 |
| Noise level dB (A) | <70 |
