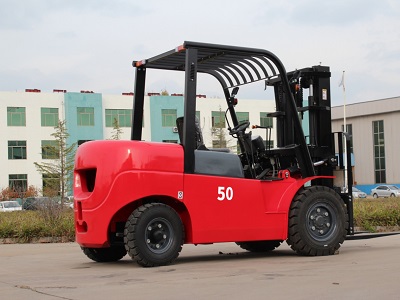

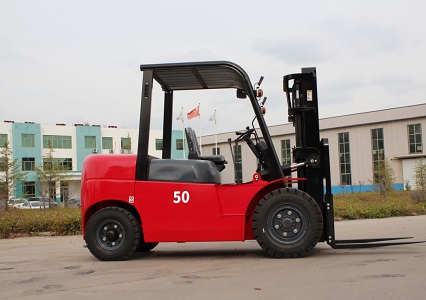

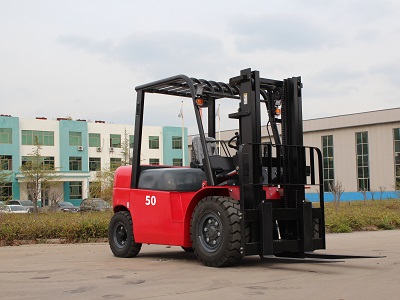

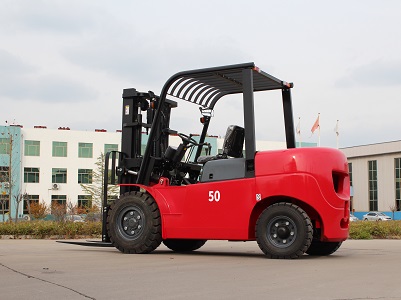

Diesel forklifts: efficient handling tools for modern warehousing and logistics

In the operation scenario of modern logistics and warehousing, forklifts, as the core handling equipment, are directly related to the overall work efficiency and operating costs of enterprises. Today, we will recommend a diesel forklift that combines efficiency, durability and strong power - CPD20 2.0 ton diesel forklift. Whether it is high-intensity and heavy-duty operations or complex and changeable working conditions, it can be stably coped with, making it an ideal choice for industrial handling.

1. Strong power: the core guarantee of high-load operations

The CPD20 forklift is equipped with a C240 diesel engine, which adopts a 4-cylinder structure design with a displacement of 2369ml and a bore and stroke specification of 90×100mm. In terms of power output, it has a rated power of up to 35.4kW (corresponding to 2500rpm) and a rated torque of 139N·m (corresponding to 1800rpm). This power configuration ensures that the forklift can maintain stable power output even in high-load operation conditions, and easily overcome various complex working conditions.

2. Efficient transmission and flexible control: the double blessing of a smooth driving experience

To improve operational efficiency and driving comfort, the forklift is equipped with a 1/1 dual-variable transmission with an operating pressure of 17.5MPa. This configuration not only greatly improves the transmission efficiency, but also realizes the smooth and uninterrupted shifting process, providing the operator with a smooth and stable driving experience whether the forklift is in an unloaded state or a fully loaded handling state.


3. Excellent load-bearing: suitable for multi-scenario cargo handling

In terms of load-bearing performance, the CPD20 forklift has a rated load of 2000kg, a load center distance of 500mm, and a fork size (× width × thickness) of 1070×120×40mm. At the same time, the outer spacing of the forks supports an adjustment range of 245-1030mm, which can flexibly adapt to different sizes of pallets. Whether it is standard palletized goods or special-shaped goods of special sizes, it can carry loads efficiently, significantly improving the efficiency of handling operations.

4. Stable structure: flexible advantage of narrow space operation

The body structure has been optimally designed, with the following parameters: wheelbase 1650mm, front overhang 480mm, front and rear track 970mm and 980mm respectively, and the minimum turning radius is only 2320mm. The compact body design allows the forklift to flexibly complete steering, U-turn and other operations in narrow spaces such as warehouses and workshops, adapting to the space requirements of a variety of operating environments.

5. High passability: stable guarantee of complex ground

For uneven ground and ramp operation scenarios, the CPD20 forklift has excellent passability and stability. Its minimum ground clearance (at the gantry) is 160mm when unloaded and 140mm when fully loaded, and the ground clearance at the frame is 150mm and 130mm when fully loaded; Maximum climb of up to 20%. Even when working on rough ground or ramps, the forklift can still maintain stable operation, providing a solid guarantee for operational safety.

6. Safety protection: protect the safety of operators in an all-round way

In terms of safety design, the safety frame height of the forklift reaches 2150mm, which can provide sufficient top protection for the operator; The gantry supports an adjustment angle of 6° forward and 12° backward, which not only facilitates the loading and unloading of goods, but also provides stable support for stacking operations, further strengthening safety during operation.
