What are features of the full-free lifting gantry of electric pallet stacker?

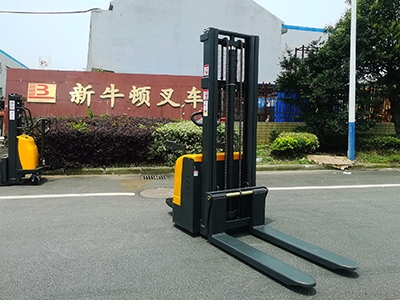

There are two lifting methods for the gantry of the electric pallet stacker, one is the traditional gantry lifting method, and the other is the full-free lifting method. Reasonable use of these two methods can reduce costs and improve work efficiency. Regardless of the forklift price, the standard model of the electric pallet stacker produced by the electric forklift manufacturer adopts the traditional gantry lifting method, while the upgraded model adopts the full-free lifting method.
The advantages of the full-free lifting gantry are mainly reflected in the high-lift electric pallet stacker. The gantry of this high-lift electric pallet stacker is generally composed of two sections and three sections. During the lifting process of this kind of gantry, there will be the problem of whether the fork lifts first or the gantry lifts first. The traditional electric pallet stacker lifts the gantry first, and then the fork. If this lifting method is used in the lower operating space at the top, it will occur that the gantry has risen to the ceiling and the fork has not yet risen to the corresponding height. Regardless of the forklift price, this electric pallet stacker using the traditional lifting method is not suitable for working indoors.
What is a electric pallet stacker suitable for indoor work? The electric forklift manufacturer recommends that customers choose the electric pallet stacker with a fully free lifting gantry. Although the forklift price will be slightly higher, this kind of electric pallet stacker has a wide range of applications, strong adaptability to the environment, and is conducive to working in a narrow space. When working, the fork shall be lifted first, and after it is raised to a certain height, the gantry of the electric pallet stacker shall be lifted again.
The electric pallet stacker produced by the electric forklift manufacturer is composed of an internal gantry and an external gantry. The fork and the gantry are lifted and lowered together with the help of the roller installed on the gantry guide rail. There are also guide rails and rollers between the inner and outer gantry. The key to determine whether the electric pallet stacker can achieve full free lifting is the installation mode and position of the sprocket. When the chain wheel is installed on the top of the inner mast, the mast of the electric pallet stacker will be lifted first, so that the full free lifting of the fork can not be achieved. Regardless of the forklift price, when the sprocket is installed on the outer gantry, the electric pallet stacker will lift the fork first and then the gantry when lifting. The lifting speed of the gantry is slower than that of the fork, about 0.5 times of the lifting speed of the fork.
-
